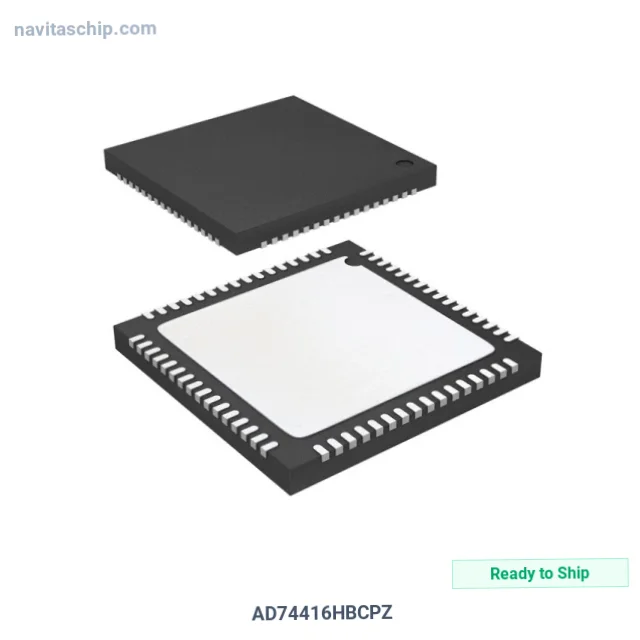

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD74416HBCPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-26638898 |
| Description | QUAD CHANNEL FLEXIBLE I/O WITH H |
| Spec | 64-WFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Software Configurable Input/Output |
| Number of Channels | 4 |
| Resolution (Bits) | 16 b |
| Sampling Rate (Per Second) | 19.2k |
| Data Interface | SPI |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 4.5V ~ 5.5V, 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LFCSP (9x9) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD74416HBCPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD74416HBCPZ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Quad Channel Flexible I/o with H, housed in a compact 64-LFCSP (9x9) package, with 4.5V ~ 5.5V, 2.7V ~ 5.5V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.5V ~ 5.5V, 2.7V ~ 5.5V
- Channels: 4
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 64-WFQFN Exposed Pad, CSP
- Device Package: 64-LFCSP (9x9)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
