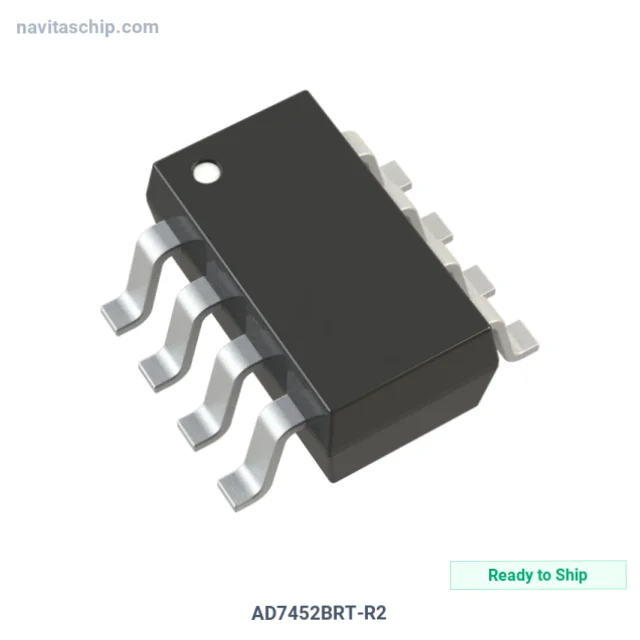

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7452BRT-R2 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-611989 |
| Description | IC ADC 12BIT 555KSPS SOT23-8 |
| Spec | SOT-23-8 |
| Package | Cut Tape (CT) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Cut Tape (CT) |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 555k |
| Data Interface | SPI, DSP |
| Number of A/D Converters | 1 |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | SOT-23-8 |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7452BRT-R2 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7452BRT-R2 is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 12bit 555ksps in 8-Pin SOT23 Package, housed in a compact SOT-23-8 package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: SOT-23-8
Packaging: factory Cut Tape (CT) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
