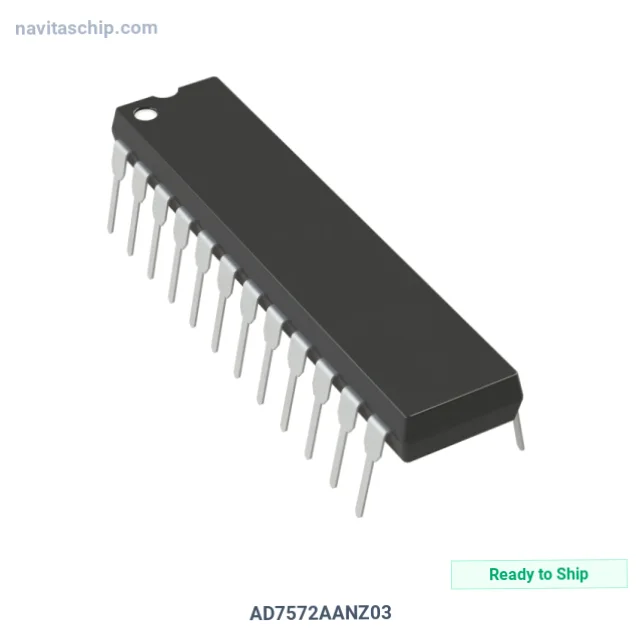

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7572AANZ03 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-996912 |
| Description | IC ADC 12BIT SAR 24DIP |
| Spec | 24-DIP (0.300", 7.62mm) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Discontinued at |
| Number of Bits | 12 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Internal |
| Voltage - Supply, Analog | 5V, -11.4V ~ 16.5V |
| Voltage - Supply, Digital | +5V, -11.4V ~ 16.5V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 24-PDIP |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7572AANZ03 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7572AANZ03 is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 12bit Sar in 24-Pin DIP Package, housed in a compact 24-PDIP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Through Hole
- Package: 24-DIP (0.300", 7.62mm)
- Device Package: 24-PDIP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
