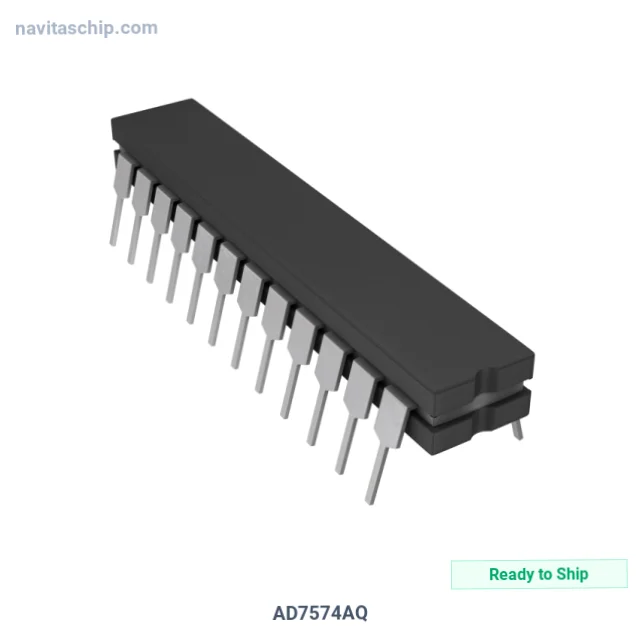

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7574AQ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-619342 |
| Description | IC ADC 8BIT SAR 24CDIP |
| Spec | 24-CDIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Number of Bits | 8 |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | ADC |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Operating Temperature | -25°C ~ 85°C |
| Supplier Device Package | 24-CDIP |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7574AQ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7574AQ is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 8bit Sar 24cdip, housed in a compact 24-CDIP package.
Key Technical Specifications
- Operating Temperature: -25°C ~ 85°C
- Mounting: Through Hole
- Package: 24-CDIP (0.300", 7.62mm)
- Device Package: 24-CDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
