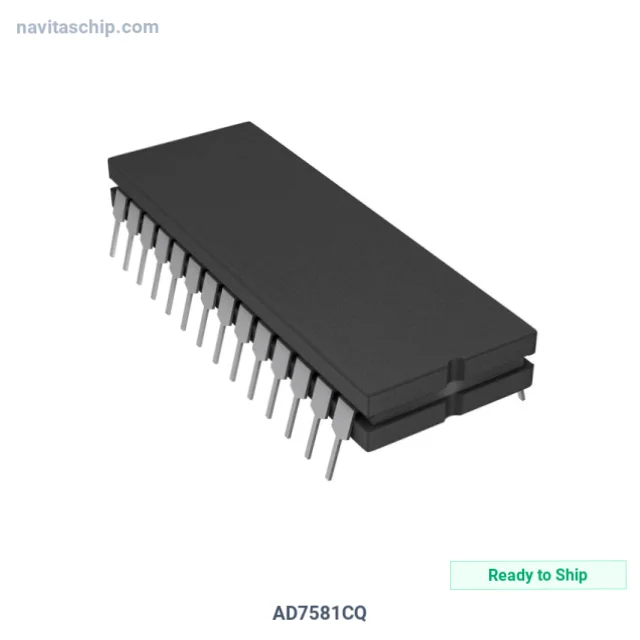

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7581CQ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-619373 |
| Description | IC DAS/ADC 8BIT 188K 28CDIP |
| Spec | 28-CDIP (0.600", 15.24mm) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Discontinued at |
| Type | Data Acquisition System (DAS), ADC |
| Number of Channels | 8 |
| Resolution (Bits) | 8 b |
| Sampling Rate (Per Second) | 188k |
| Data Interface | Parallel |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 5V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 28-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7581CQ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7581CQ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Das/analog-To-Digital Converter 8bit 188k 28cdip, housed in a compact 28-CDIP package, with 5V supply voltage.
Key Technical Specifications
- Supply Voltage: 5V
- Channels: 8
- Operating Temperature: -25°C ~ 85°C
- Mounting: Through Hole
- Package: 28-CDIP (0.600", 15.24mm)
- Device Package: 28-CDIP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
