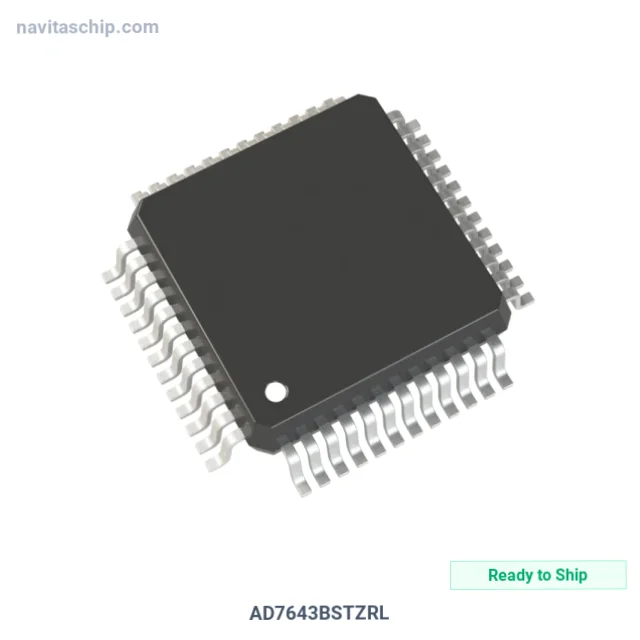

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7643BSTZRL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1118666 |
| Description | IC ADC 18BIT SAR 48LQFP |
| Spec | 48-LQFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 1.25M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI, Parallel, DSP |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.37V ~ 2.63V |
| Voltage - Supply, Digital | 2.37V ~ 2.63V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 48-LQFP (7x7) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7643BSTZRL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7643BSTZRL is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 18bit Sar in 48-Pin LQFP Package, housed in a compact 48-LQFP (7x7) package.
Struggling with precision ADC EOL and obsolescence disrupting data acquisition production lines? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 48-LQFP
- Device Package: 48-LQFP (7x7)
- RoHS Compliant
Applications
Designed for:
- industrial automation
- pipeline ADC for intermediate-frequency sampling and software-defined radio
- 12-bit and 14-bit mainstream precision ADC with integrated reference
- 16-bit and 18-bit high-resolution ADC for instrumentation and process control
- test and measurement instrumentation and bench data acquisition equipment
Why Choose NavitasChip for AD7643BSTZRL?
NavitasChip offers global surplus sourcing network for the AD7643BSTZRL and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Multiple origin options for AD7643BSTZRL to optimize delivery time and customs clearance.
AD7643BSTZRL - Contact our sales team.
