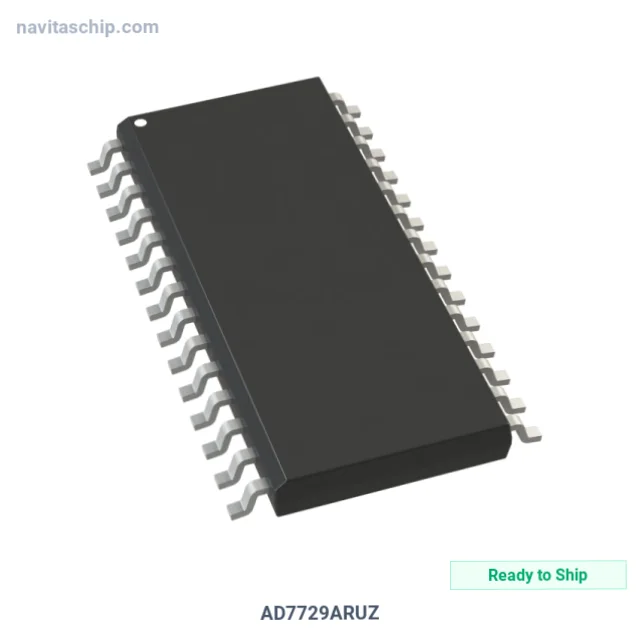

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7729ARUZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-997068 |
| Description | IC ADC/DAC 15BIT 270.8K 28TSSOP |
| Spec | 28-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Type | ADC, DAC |
| Number of Channels | 2 |
| Resolution (Bits) | 15 b |
| Sampling Rate (Per Second) | 270.8k |
| Data Interface | Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 3.3V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7729ARUZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7729ARUZ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter/digital-To-Analog Converter 15bit 270.8k in 28-Pin TSSOP Package, housed in a compact 28-TSSOP package, with 2.7V ~ 3.3V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.7V ~ 3.3V
- Channels: 2
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 28-TSSOP (0.173", 4.40mm Width)
- Device Package: 28-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
