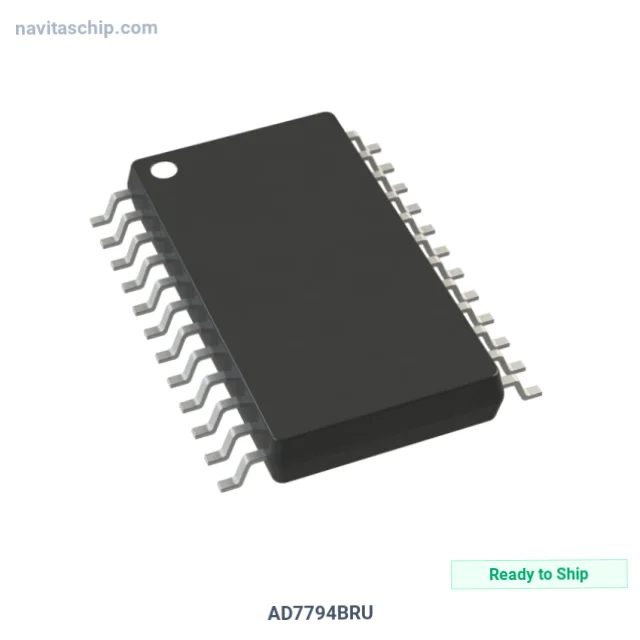

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7794BRU |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-760704 |
| Description | IC ADC 24BIT SIGMA-DELTA 24TSSOP |
| Spec | 24-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 470 |
| Number of Inputs | 6 |
| Input Type | Differential |
| Data Interface | SPI, DSP |
| Configuration | MUX-ADC |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | PGA, Temperature Sensor |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 24-TSSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7794BRU Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7794BRU is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 24bit Sigma-Delta in 24-Pin TSSOP Package, housed in a compact 24-TSSOP package.
Struggling with end-of-life pipeline ADC transition without firmware or analog front-end redesign? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 24-TSSOP (0.173", 4.40mm Width)
- Device Package: 24-TSSOP
Applications
Widely adopted for:
- professional equipment
- serial-interface ADC with SPI, I2C and microwire for embedded microcontroller systems
- integrated-reference low-power ADC for always-on battery-powered measurement
- 12-bit and 14-bit mainstream precision ADC with integrated reference
- portable battery-powered handheld instrumentation and field test equipment
Why Choose NavitasChip for AD7794BRU?
NavitasChip offers cost-effective alternative to authorized distributors for the AD7794BRU and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
