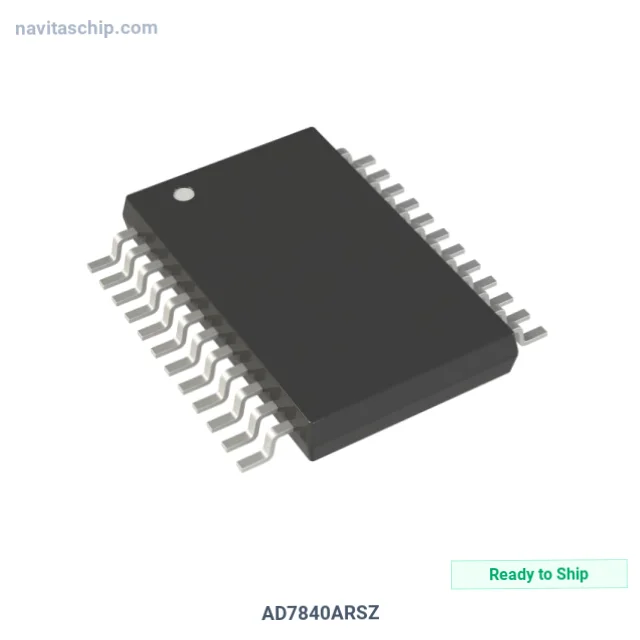

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7840ARSZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-936697 |
| Description | IC DAC 14BIT V-OUT 24SSOP |
| Spec | 24-SSOP (0.209", 5.30mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 14 |
| Number of D/A Converters | 1 |
| Settling Time | 4µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel, Serial |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±5V |
| INL/DNL (LSB) | ±2 (Max), ±0.9 (Max) |
| Architecture | R-2R |
| Operating Temperature | -25°C ~ 85°C |
| Supplier Device Package | 24-SSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7840ARSZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7840ARSZ is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 14bit V-Out in 24-Pin SSOP Package, housed in a compact 24-SSOP package.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -25°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-SSOP (0.209", 5.30mm Width)
- Device Package: 24-SSOP
- RoHS Compliant
