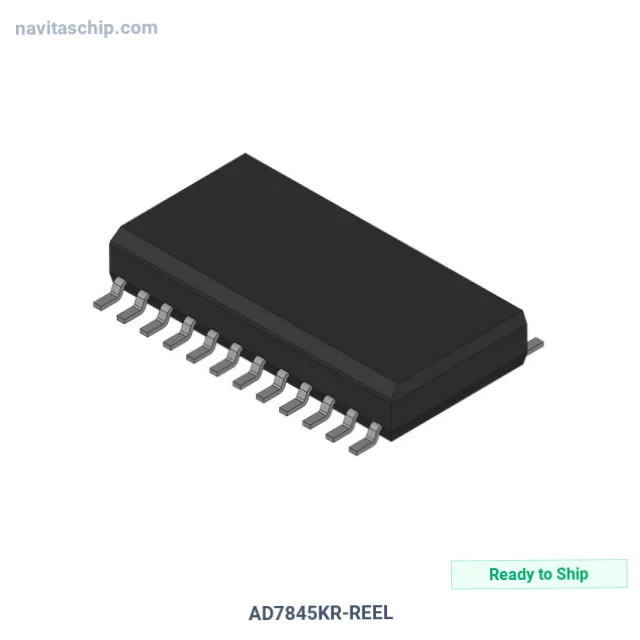

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7845KR-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12112713 |
| Description | IC DAC 12BIT V-OUT 24SOIC |
| Spec | 24-SOIC (0.295", 7.50mm Width) |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time | 5µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | ±14.25V ~ 15.75V |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Architecture | Multiplying DAC, R-2R |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 24-SOIC |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7845KR-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7845KR-REEL is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 12bit V-Out in 24-Pin SOIC Package, housed in a compact 24-SOIC package.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 24-SOIC (0.295", 7.50mm Width)
- Device Package: 24-SOIC
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
