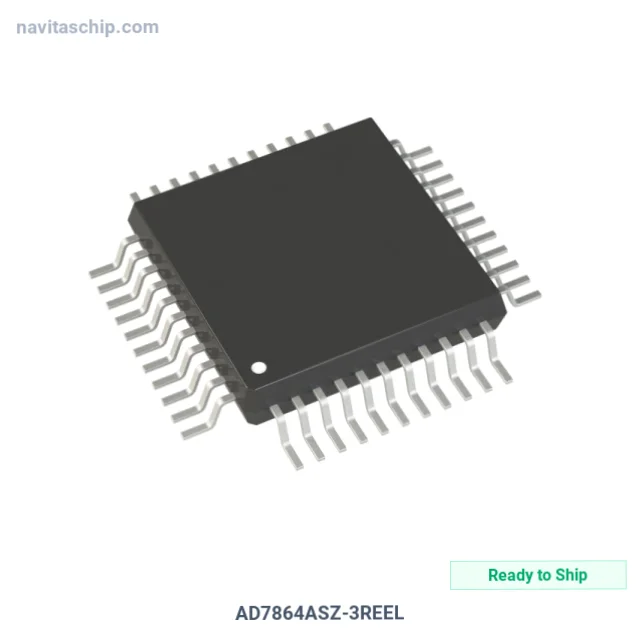

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7864ASZ-3REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-993495 |
| Description | IC ADC 12BIT SAR 44MQFP |
| Spec | 44-QFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 520k |
| Number of Inputs | 4 |
| Input Type | Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-MUX-ADC |
| Ratio - S/H | 4:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 44-MQFP (10x10) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7864ASZ-3REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7864ASZ-3REEL is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 12bit Sar 44mqfp, housed in a compact 44-MQFP (10x10) package. Tape and Reel packaging available.
Facing long factory lead times exceeding 40-50 weeks on precision data converters? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 44-QFP
- Device Package: 44-MQFP (10x10)
Applications
Designed for:
- pipeline ADC for intermediate-frequency sampling and software-defined radio
- 8-bit and 10-bit cost-optimized ADC for general-purpose conversion
- 16-bit and 18-bit high-resolution ADC for instrumentation and process control
Why Choose NavitasChip for AD7864ASZ-3REEL?
NavitasChip offers wholesale pricing advantages for the AD7864ASZ-3REEL and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for AD7864ASZ-3REEL with regional warehouse support.
AD7864ASZ-3REEL - Check our competitive price now.
