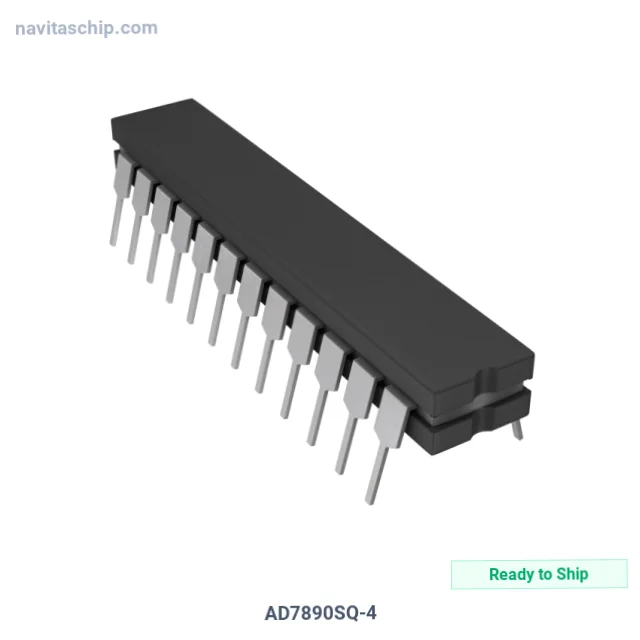

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7890SQ-4 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-620178 |
| Description | IC DAS 12BIT 117K 24CDIP |
| Spec | 24-CDIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 8 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 117k |
| Data Interface | Serial |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 24-CDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7890SQ-4 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7890SQ-4 is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Das 12bit 117k 24cdip, housed in a compact 24-CDIP package, with 5V supply voltage.
Key Technical Specifications
- Supply Voltage: 5V
- Channels: 8
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 24-CDIP (0.300", 7.62mm)
- Device Package: 24-CDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
