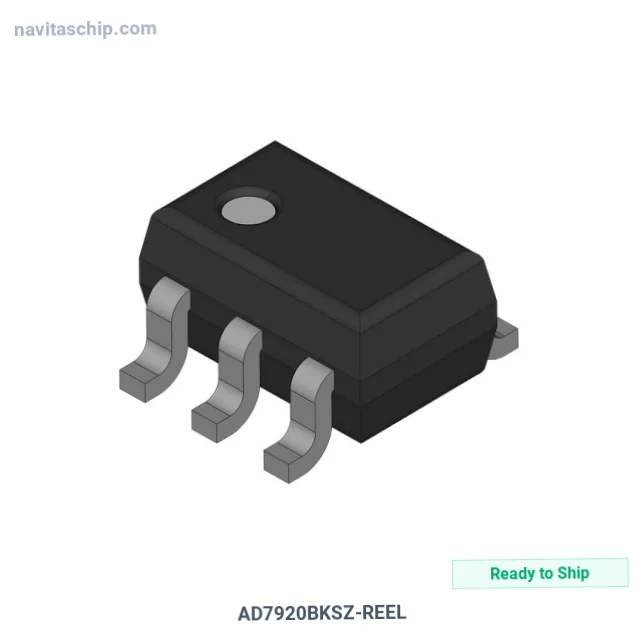

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD7920BKSZ-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-15639021 |
| Description | 12-BIT 250KSPS,ADC SC70 PKG I.C. |
| Spec | 6-TSSOP, SC-88, SOT-363 |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 250k |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | SPI, DSP |
| Configuration | S/H-ADC |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.35V ~ 5.25V |
| Voltage - Supply, Digital | 2.35V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | SC-70-6 |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD7920BKSZ-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD7920BKSZ-REEL is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). 12-Bit 250ksps, housed in a compact SC-70-6 package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 6-TSSOP, SC-88, SOT-363
- Device Package: SC-70-6
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
