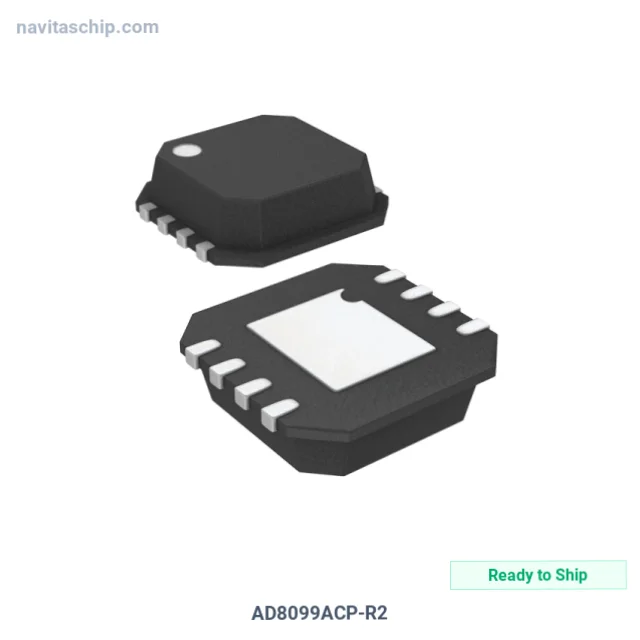

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8099ACP-R2 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-656168 |
| Description | IC OPAMP VF ULN ULDIST 8LFCSP |
| Spec | 8-VFDFN Exposed Pad, CSP |
| Package | Cut Tape (CT) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Cut Tape (CT) |
| Product Status | Obsolete |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 |
| Slew Rate | 1350V/µs |
| -3db Bandwidth | 510 MHz |
| Current - Input Bias | 6 µA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 15mA |
| Current - Output / Channel | 178 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 12 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-LFCSP (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8099ACP-R2 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8099ACP-R2 is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier Vf Uln Uldist in 8-Pin Csp Package, housed in a compact 8-LFCSP (3x3) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 8-VFDFN Exposed Pad, CSP
- Device Package: 8-LFCSP (3x3)
Packaging: factory Cut Tape (CT) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
