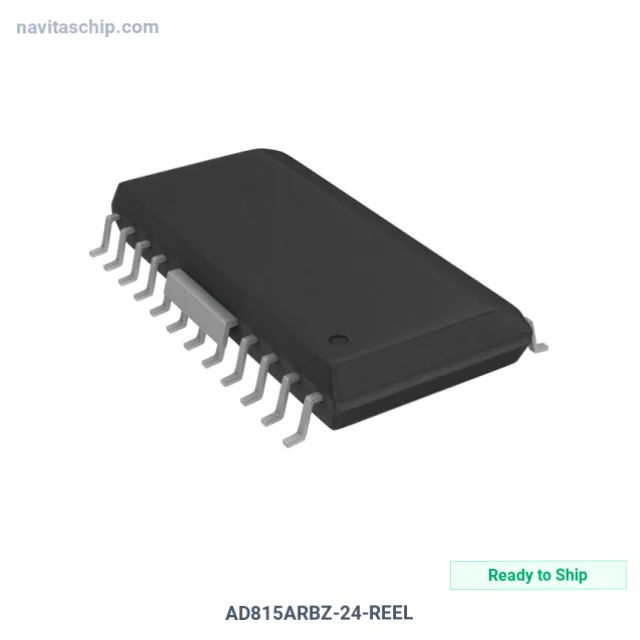

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD815ARBZ-24-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-994004 |
| Description | IC OPAMP DIFF 2 CIRC 24SOIC W/BW |
| Spec | 24-SOIC (0.295", 7.50mm Width), 18 Leads, Fused Leads |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | Differential |
| Number of Circuits | 2 |
| Output Type | Differential |
| Slew Rate | 900V/µs |
| -3db Bandwidth | 120 MHz |
| Current - Input Bias | 10 µA |
| Voltage - Input Offset | 5 mV |
| Current - Supply | 23mA |
| Current - Output / Channel | 500 mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SOIC w/Batwing |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD815ARBZ-24-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD815ARBZ-24-REEL is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier Differential 2 Circ in 24-Pin SOIC Package W/bandwidth, housed in a compact 24-SOIC w/Batwing package. Tape and Reel packaging available.
Facing end-of-life buffer and instrumentation amplifier transition without analog board redesign? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-SOIC (0.295", 7.50mm Width), 18 Leads, Fused Leads
- Device Package: 24-SOIC w/Batwing
Applications
Engineered specifically for:
- instrumentation amplifier with integrated gain resistors for differential bridge sensor readout
- zero-drift precision alternative to discontinued Linear LTC1050, LTC2050 and Maxim MAX4238 chopper-stabilized parts
- high-side and low-side current sensing for lithium battery packs, BMS and brushless motor phase monitoring
- photodiode transimpedance amplification, active filter design and analog computational stages in optical sensing
Why Choose NavitasChip for AD815ARBZ-24-REEL?
NavitasChip offers hard-to-find component sourcing for legacy systems for the AD815ARBZ-24-REEL and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
