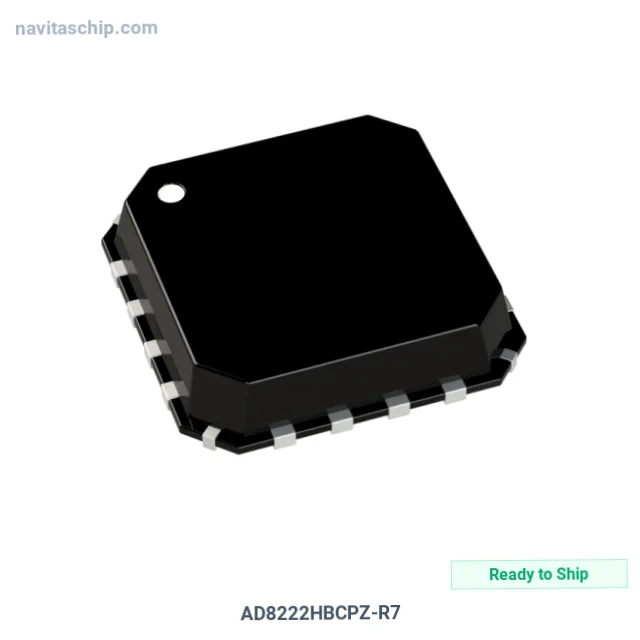

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8222HBCPZ-R7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2272177 |
| Description | IC INST AMP 2 CIRCUIT 16LFCSP |
| Spec | 16-VQFN, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Instrumentation |
| Number of Circuits | 2 |
| Slew Rate | 2V/µs |
| Gain Bandwidth Product | 7 MHz |
| -3db Bandwidth | 1.2 MHz |
| Current - Input Bias | 200 pA |
| Voltage - Input Offset | 60 µV |
| Current - Supply | 900µA (x2 Channels) |
| Current - Output / Channel | 18 mA |
| Voltage - Supply Span (Min) | 4.6 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8222HBCPZ-R7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8222HBCPZ-R7 is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Inst Amplifier 2 Circuit in 16-Pin Csp Package, housed in a compact 16-LFCSP-VQ (4x4) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-VQFN, CSP
- Device Package: 16-LFCSP-VQ (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
