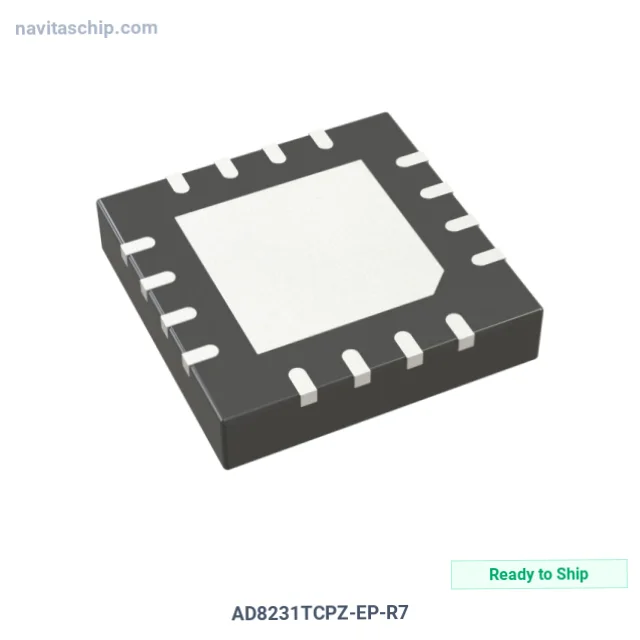

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8231TCPZ-EP-R7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2700057 |
| Description | IC INST AMP 1 CIRCUIT 16LFCSP |
| Spec | 16-VQFN Exposed Pad, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 1.1V/µs |
| Gain Bandwidth Product | 7 MHz |
| Current - Input Bias | 250 pA |
| Voltage - Input Offset | 4 µV |
| Current - Supply | 4mA |
| Current - Output / Channel | 70 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 6 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8231TCPZ-EP-R7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8231TCPZ-EP-R7 is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Inst Amplifier 1 Circuit in 16-Pin Csp Package, housed in a compact 16-LFCSP-VQ (4x4) package.
Struggling with INA-series current sense amplifier allocation squeezed by EV charging and battery management demand surge? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -55°C ~ 125°C
- Mounting: Surface Mount
- Package: 16-VQFN Exposed Pad, CSP
- Device Package: 16-LFCSP-VQ (4x4)
- RoHS Compliant
Applications
Perfect for:
- general-purpose operational amplifier for analog signal buffering, amplification and conditioning
- low-noise op amp with low input voltage and current noise for high-resolution analog front-ends
- INA199, INA240 and MAX4376 current sense amplifier replacement for legacy battery management designs
Why Choose NavitasChip for AD8231TCPZ-EP-R7?
NavitasChip offers wholesale pricing advantages for the AD8231TCPZ-EP-R7 and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for AD8231TCPZ-EP-R7, serving customers in Japan, Thailand, and worldwide.
AD8231TCPZ-EP-R7 - Inquire for bulk discount.
