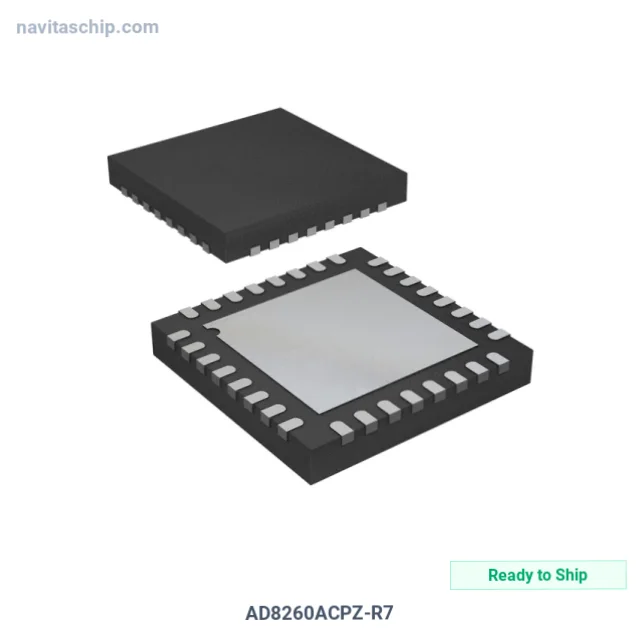

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8260ACPZ-R7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1873688 |
| Description | IC VARIABLE GAIN 1 CIRC 32LFCSP |
| Spec | 32-WFQFN Exposed Pad, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Amplifier Type | Variable Gain |
| Number of Circuits | 1 |
| Output Type | Differential |
| Slew Rate | 730V/µs |
| -3db Bandwidth | 195 MHz |
| Current - Input Bias | 200 nA |
| Current - Supply | 28.3mA |
| Current - Output / Channel | 310 mA |
| Voltage - Supply Span (Min) | 3.3 V |
| Voltage - Supply Span (Max) | 10 V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-LFCSP (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8260ACPZ-R7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8260ACPZ-R7 is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Variable Gain 1 Circ in 32-Pin Csp Package, housed in a compact 32-LFCSP (5x5) package.
Struggling with AD8554, AD8638 and AD8556 zero-drift instrumentation amplifier sourcing for in-service strain-gauge platforms? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 32-WFQFN Exposed Pad, CSP
- Device Package: 32-LFCSP (5x5)
- RoHS Compliant
Applications
Engineered specifically for:
- consumer electronics
- professional equipment
- low-power and micro-power op amp for portable, wearable and energy-harvesting designs
- rail-to-rail RRIO substitute for discontinued TLV9061, TLV2371, OPA340 and OPA350 single-supply parts
Why Choose NavitasChip for AD8260ACPZ-R7?
NavitasChip offers cost-effective alternative to authorized distributors for the AD8260ACPZ-R7 and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Ships from Hong Kong, Singapore, or Shenzhen based on destination requirements.
AD8260ACPZ-R7 - Get instant quote online.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
