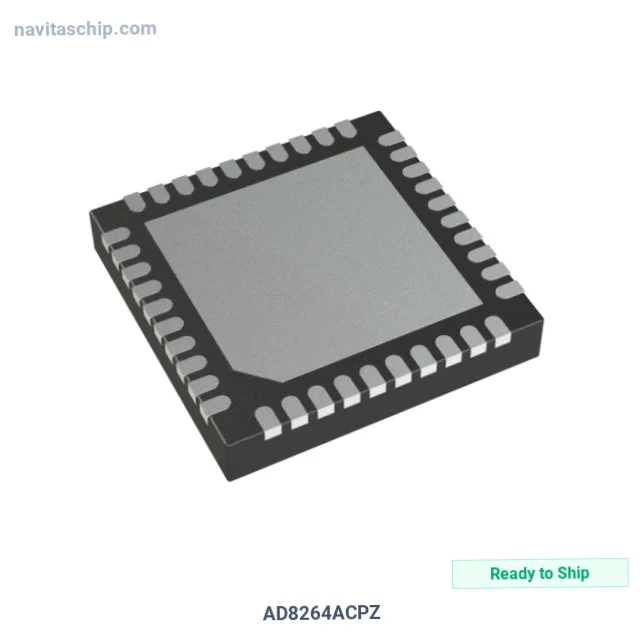

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8264ACPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2057773 |
| Description | IC VARIABLE GAIN 4 CIRC 40LFCSP |
| Spec | 40-WFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tray |
| Product Status | Active |
| Amplifier Type | Variable Gain |
| Number of Circuits | 4 |
| Output Type | Differential |
| Slew Rate | 380V/µs |
| -3db Bandwidth | 235 MHz |
| Current - Input Bias | 5 µA |
| Current - Supply | 99mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 10 V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 40-LFCSP-WQ (6x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8264ACPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8264ACPZ is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Variable Gain 4 Circ in 40-Pin Csp Package, housed in a compact 40-LFCSP-WQ (6x6) package.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 40-WFQFN Exposed Pad, CSP
- Device Package: 40-LFCSP-WQ (6x6)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
