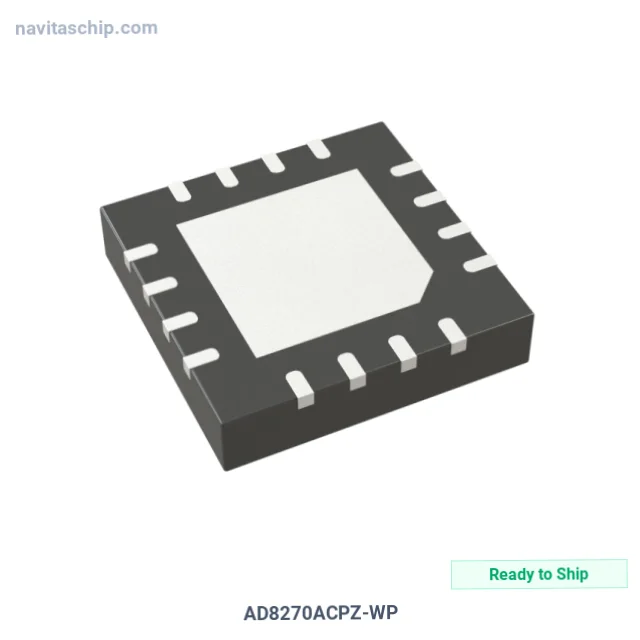

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8270ACPZ-WP |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1826535 |
| Description | IC OPAMP DIFF 2 CIRCUIT 16LFCSP |
| Spec | 16-WQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Amplifier Type | Programmable Gain |
| Number of Circuits | 2 |
| Output Type | Single-Ended |
| Slew Rate | 30V/µs |
| Gain Bandwidth Product | 20 MHz |
| Current - Input Bias | 500 pA |
| Voltage - Input Offset | 450 µV |
| Current - Supply | 2.3mA (x2 Channels) |
| Current - Output / Channel | 100 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-LFCSP (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8270ACPZ-WP Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8270ACPZ-WP is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier Differential 2 Circuit in 16-Pin Csp Package, housed in a compact 16-LFCSP (4x4) package.
Facing discontinued chopper-stabilized and zero-drift amplifier families requiring drop-in pin-compatible replacements? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Single-Ended
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-WQFN Exposed Pad, CSP
- Device Package: 16-LFCSP (4x4)
- RoHS Compliant
Applications
Designed for:
- high-speed op amp with wide gain-bandwidth product for active filter and ADC driver stages
- low-noise op amp with low input voltage and current noise for high-resolution analog front-ends
- Burr-Brown legacy OPA277, OPA227 and OPA627 precision amplifier cross-reference and spot buy sourcing
- photodiode transimpedance amplification, active filter design and analog computational stages in optical sensing
Why Choose NavitasChip for AD8270ACPZ-WP?
NavitasChip offers Allocated parts in stock when authorized channels face shortage for the AD8270ACPZ-WP and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
