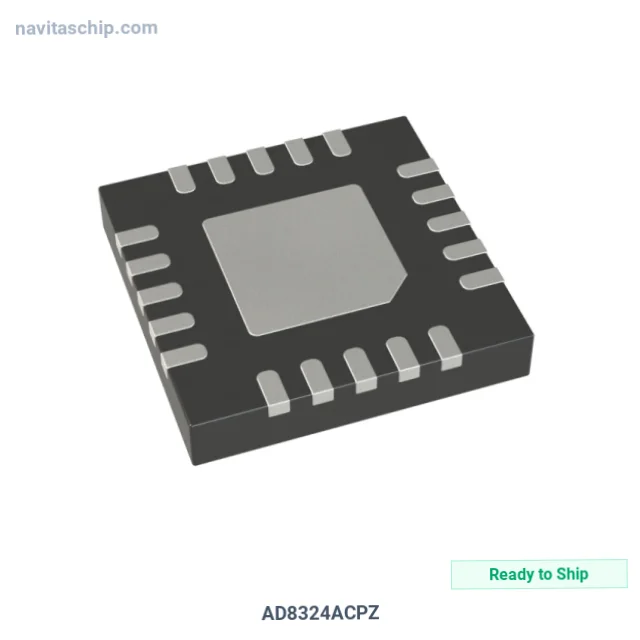

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8324ACPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1116159 |
| Description | IC TRANSCEIVER 20LFCSP |
| Spec | 20-WFQFN Exposed Pad, CSP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Type | Line Driver, Transmitter |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-LFCSP (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8324ACPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8324ACPZ is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Transceiver in 20-Pin Csp Package, housed in a compact 20-LFCSP (4x4) package.
Key Technical Specifications
- Mounting: Surface Mount
- Package: 20-WFQFN Exposed Pad, CSP
- Device Package: 20-LFCSP (4x4)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
