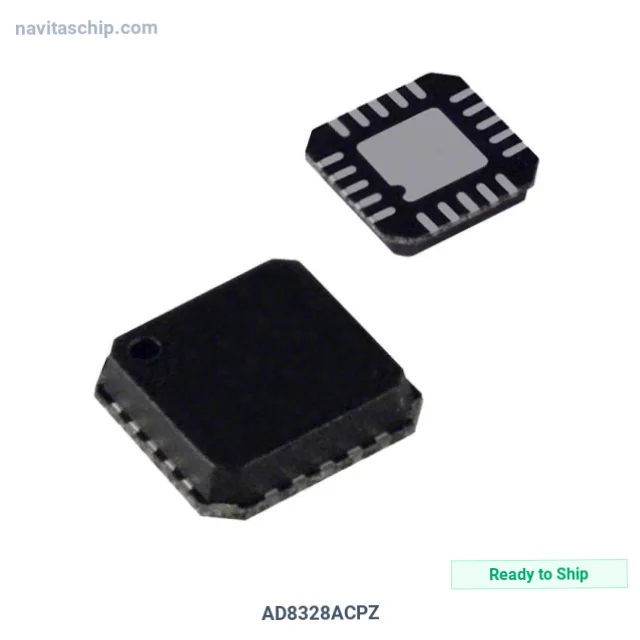

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8328ACPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-644121 |
| Description | IC VIDEO LINE DRVR/TRANS 20LFCSP |
| Spec | 20-VFQFN Exposed Pad, CSP |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Type | Line Driver, Transmitter |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-LFCSP-VQ (4x3.75) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8328ACPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8328ACPZ is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Video Line Driver/trans in 20-Pin Csp Package, housed in a compact 20-LFCSP-VQ (4x3.75) package.
Key Technical Specifications
- Mounting: Surface Mount
- Package: 20-VFQFN Exposed Pad, CSP
- Device Package: 20-LFCSP-VQ (4x3.75)
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
