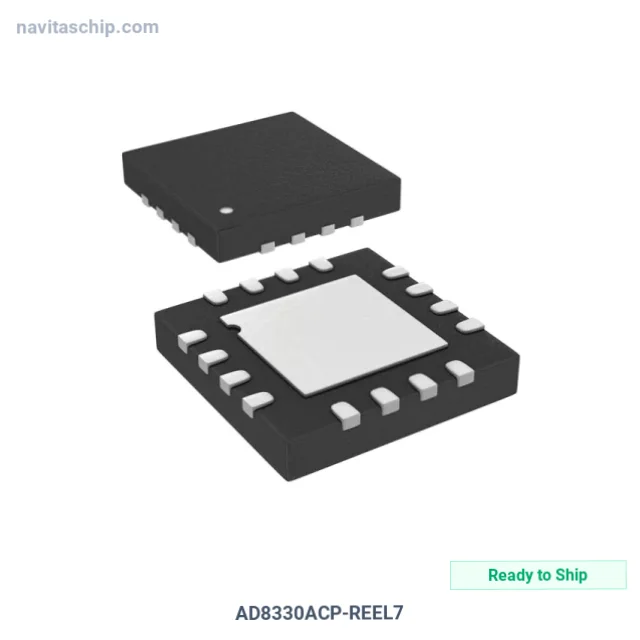

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8330ACP-REEL7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-11529353 |
| Description | IC AMP VGA 150MHZ LN LP 16LFCSP |
| Spec | 16-WFQFN Exposed Pad, CSP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Amplifier Type | Variable Gain |
| Number of Circuits | 1 |
| Output Type | Differential, Rail-to-Rail |
| Slew Rate | 1500V/µs |
| -3db Bandwidth | 150 MHz |
| Current - Input Bias | 100 nA |
| Current - Supply | 20mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 6 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-LFCSP-WQ (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8330ACP-REEL7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8330ACP-REEL7 is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Amplifier Vga operating at 150MHz Ln Low Power in 16-Pin Csp Package, housed in a compact 16-LFCSP-WQ (3x3) package.
Key Technical Specifications
- Output Type: Differential, Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-WFQFN Exposed Pad, CSP
- Device Package: 16-LFCSP-WQ (3x3)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
