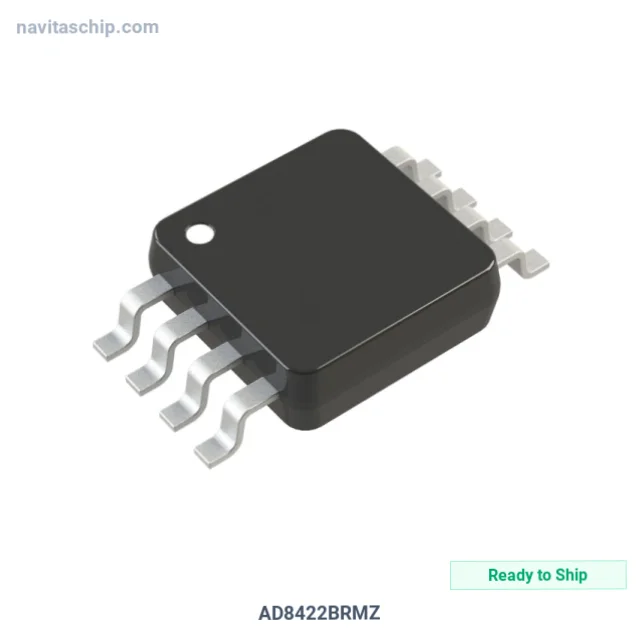

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8422BRMZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-4250209 |
| Description | IC INST AMP 1 CIRCUIT 8MSOP |
| Spec | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tube |
| Product Status | Active |
| Amplifier Type | Instrumentation |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.8V/µs |
| -3db Bandwidth | 2.2 MHz |
| Current - Input Bias | 200 pA |
| Voltage - Input Offset | 50 µV |
| Current - Supply | 300µA |
| Current - Output / Channel | 20 mA |
| Voltage - Supply Span (Min) | 4.6 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8422BRMZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8422BRMZ is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Inst Amplifier 1 Circuit in 8-Pin MSOP Package, housed in a compact 8-MSOP package.
Facing TI TLE2024, TLE2022 and TLE2071 BiFET legacy op amps for industrial process control and motor drive applications? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Device Package: 8-MSOP
- RoHS Compliant
