| Manufacturer Product Number | AD8426BCPZ-WP |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2742221 |
| Description | IC INST AMP 2 CIRCUIT 16LFCSP |
| Spec | 16-VQFN, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Discontinued at |
| Amplifier Type | Instrumentation |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.6V/µs |
| -3db Bandwidth | 1 MHz |
| Current - Input Bias | 20 nA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 350µA (x2 Channels) |
| Current - Output / Channel | 13 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-LFCSP-VQ (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8426BCPZ-WP Datasheet |

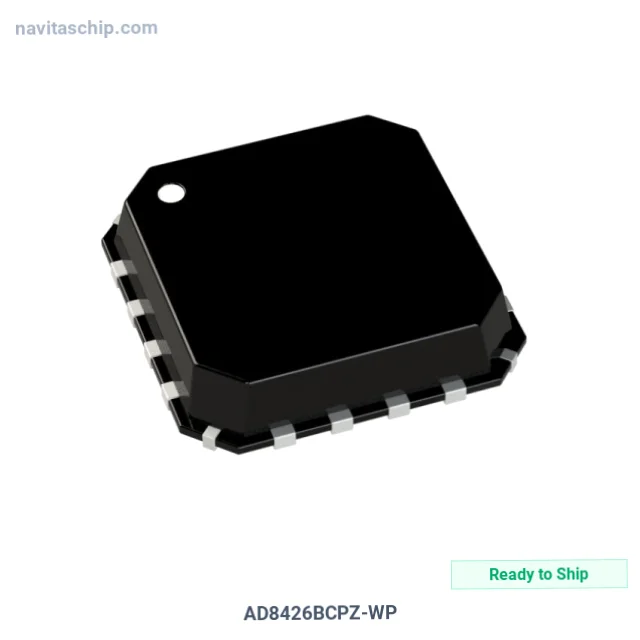

| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8426BCPZ-WP is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Inst Amplifier 2 Circuit in 16-Pin Csp Package, housed in a compact 16-LFCSP-VQ (4x4) package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 16-VQFN, CSP
- Device Package: 16-LFCSP-VQ (4x4)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
