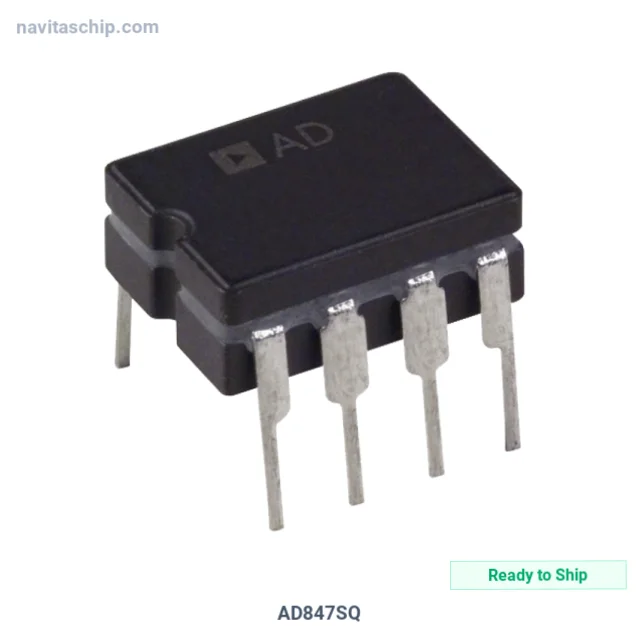

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD847SQ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-621217 |
| Description | IC OPAMP GP 1 CIRCUIT 8CERDIP |
| Spec | 8-CDIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Discontinued at |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 1 |
| Slew Rate | 300V/µs |
| Gain Bandwidth Product | 50 MHz |
| Current - Input Bias | 3.3 µA |
| Voltage - Input Offset | 500 µV |
| Current - Supply | 5.3mA |
| Current - Output / Channel | 32 mA |
| Voltage - Supply Span (Min) | 9 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-CERDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD847SQ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD847SQ is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier General Purpose 1 Circuit 8cerdip, housed in a compact 8-CERDIP package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 125°C
- Mounting: Through Hole
- Package: 8-CDIP (0.300", 7.62mm)
- Device Package: 8-CERDIP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
