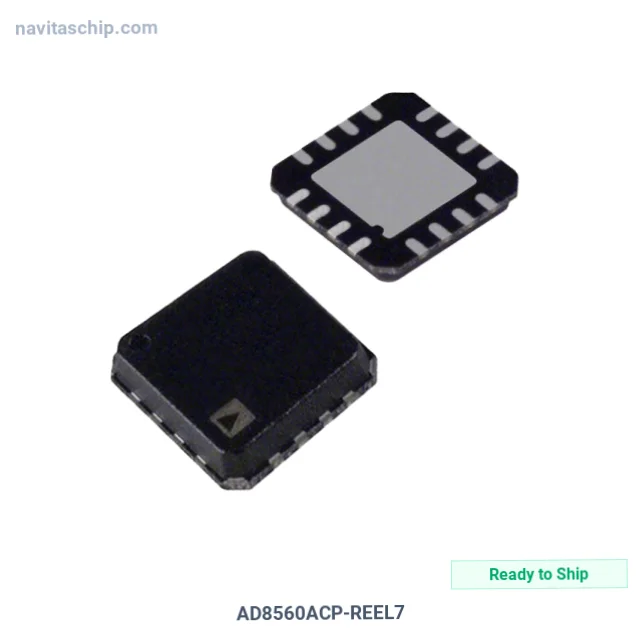

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8560ACP-REEL7 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-12599306 |
| Description | IC BUFFER AMP 5CH 16V 16-LFCSP |
| Spec | 16-VFQFN Exposed Pad, CSP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Obsolete |
| Amplifier Type | Buffer |
| Number of Circuits | 5 |
| Output Type | Rail-to-Rail |
| Slew Rate | 8V/µs |
| -3db Bandwidth | 8 MHz |
| Current - Input Bias | 80 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 780µA (x5 Channels) |
| Current - Output / Channel | 35 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 32 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-LFCSP (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8560ACP-REEL7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8560ACP-REEL7 is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Buffer Amplifier 5-Channel 16V Supply in 16-Pin Csp Package, housed in a compact 16-LFCSP (3x3) package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 16-VFQFN Exposed Pad, CSP
- Device Package: 16-LFCSP (3x3)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
