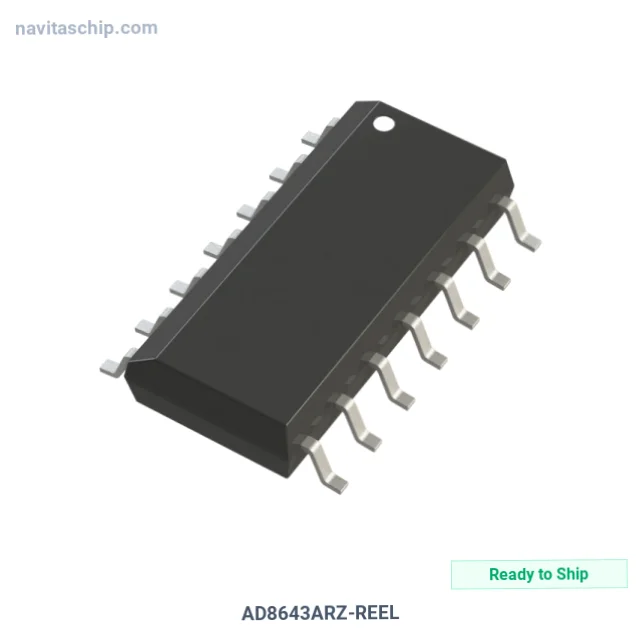

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD8643ARZ-REEL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-993843 |
| Description | IC OPAMP JFET 4 CIRCUIT 14SOIC |
| Spec | 14-SOIC (0.154", 3.90mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | J-FET |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 3V/µs |
| Gain Bandwidth Product | 3.5 MHz |
| Current - Input Bias | 0.25 pA |
| Voltage - Input Offset | 70 µV |
| Current - Supply | 200µA (x4 Channels) |
| Current - Output / Channel | 12 mA |
| Voltage - Supply Span (Min) | 5 V |
| Voltage - Supply Span (Max) | 26 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SOIC |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD8643ARZ-REEL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD8643ARZ-REEL is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier JFET 4 Circuit in 14-Pin SOIC Package, housed in a compact 14-SOIC package. Tape and Reel packaging available.
Don't let high-voltage 36V, 50V and 60V industrial op amp supply gaps as semiconductor industry shifts to low-voltage RRIO designs slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 14-SOIC (0.154", 3.90mm Width)
- Device Package: 14-SOIC
Applications
Commonly utilized in:
- professional equipment
- current sense amplifier for high-side and bidirectional battery and motor current monitoring
- zero-drift precision alternative to discontinued Linear LTC1050, LTC2050 and Maxim MAX4238 chopper-stabilized parts
Why Choose NavitasChip for AD8643ARZ-REEL?
NavitasChip offers hard-to-find component sourcing for legacy systems for the AD8643ARZ-REEL and thousands of other electronic components.
- Availability: Same-day Shipping Options
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Reliable supplier of AD8643ARZ-REEL for the Norway and Denmark markets.
AD8643ARZ-REEL - Contact our sales team.
