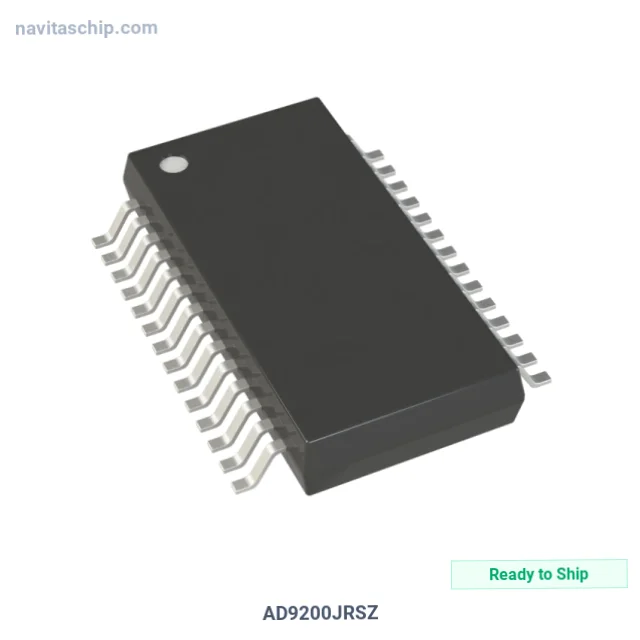

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD9200JRSZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-671128 |
| Description | IC ADC 10BIT PIPELINED 28SSOP |
| Spec | 28-SSOP (0.209", 5.30mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Active |
| Number of Bits | 10 |
| Sampling Rate (Per Second) | 20M |
| Number of Inputs | 1 |
| Input Type | Differential, Single Ended |
| Data Interface | Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Operating Temperature | 0°C ~ 70°C |
| Supplier Device Package | 28-SSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD9200JRSZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD9200JRSZ is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 10bit Pipelined in 28-Pin SSOP Package, housed in a compact 28-SSOP package.
Struggling with end-of-life pipeline ADC transition without firmware or analog front-end redesign? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 28-SSOP (0.209", 5.30mm Width)
- Device Package: 28-SSOP
- RoHS Compliant
Applications
Perfect for:
- serial-interface ADC with SPI, I2C and microwire for embedded microcontroller systems
- 20-bit and 24-bit ultra-high-resolution ADC for metrology and bridge sensor readout
- megasample-per-second (MSPS) sampling for communication and imaging front-ends
- low-noise high-SNR analog acquisition with internal anti-aliasing filtering
- test and measurement instrumentation and bench data acquisition equipment
Why Choose NavitasChip for AD9200JRSZ?
NavitasChip offers hard-to-find component sourcing for legacy systems for the AD9200JRSZ and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
AD9200JRSZ sourced and shipped via our Asia-Pacific distribution network.
AD9200JRSZ - Get instant quote online.
