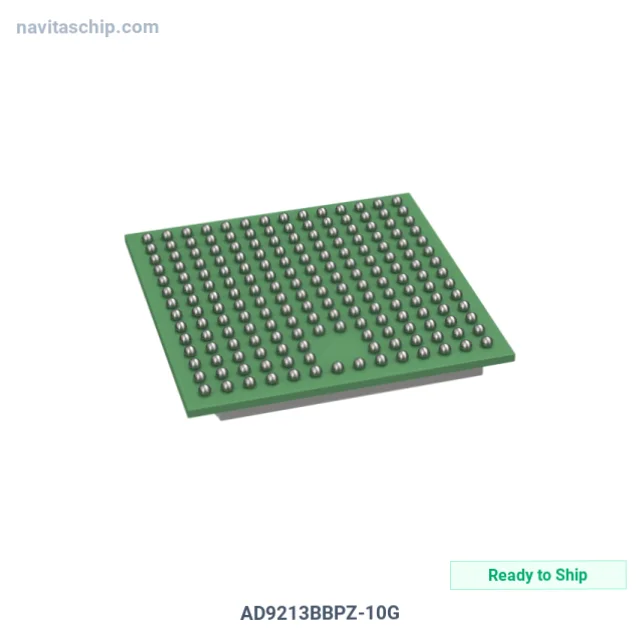

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD9213BBPZ-10G |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-10659342 |
| Description | IC ADC 12BIT PIPELINED 192BGA |
| Spec | 192-LFBGA Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 10.25G |
| Number of Inputs | 1 |
| Input Type | Single Ended |
| Data Interface | JESD204B |
| Configuration | ADC |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 0.975V ~ 1.025V |
| Voltage - Supply, Digital | 0.975V ~ 1.025V |
| Features | Simultaneous Sampling |
| Operating Temperature | -20°C ~ 115°C |
| Supplier Device Package | 192-BGA-ED (12x12) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD9213BBPZ-10G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD9213BBPZ-10G is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 12bit Pipelined in 192-Pin BGA Package, housed in a compact 192-BGA-ED (12x12) package.
Key Technical Specifications
- Operating Temperature: -20°C ~ 115°C
- Mounting: Surface Mount
- Package: 192-LFBGA Exposed Pad
- Device Package: 192-BGA-ED (12x12)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
