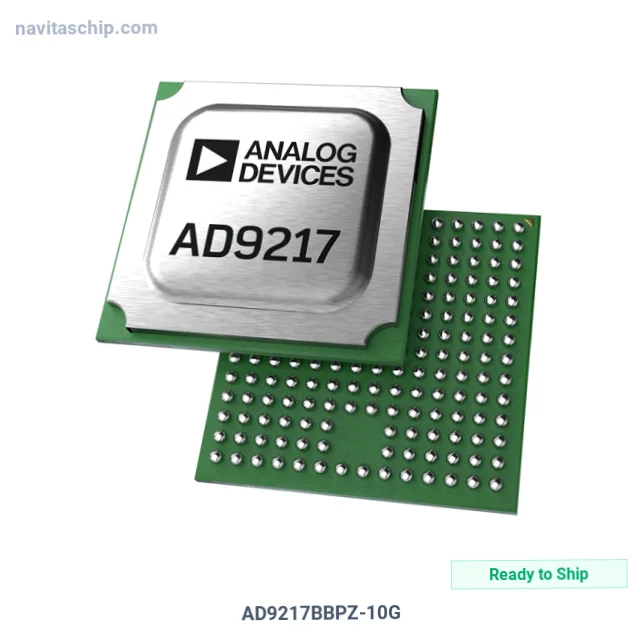

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD9217BBPZ-10G |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-14549414 |
| Description | 12 BIT ADC JESD204B+ HIGH SPEED |
| Spec | 192-LFBGA Exposed Pad |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 10.25G |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | SPI |
| Configuration | ADC |
| Ratio - S/H | 0:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Operating Temperature | -20°C ~ 115°C |
| Supplier Device Package | 192-BGA-ED (12x12) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD9217BBPZ-10G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD9217BBPZ-10G is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). 12 Bit Analog-To-Digital Converter Jesd204b+ High Speed, housed in a compact 192-BGA-ED (12x12) package.
Key Technical Specifications
- Operating Temperature: -20°C ~ 115°C
- Mounting: Surface Mount
- Package: 192-LFBGA Exposed Pad
- Device Package: 192-BGA-ED (12x12)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
