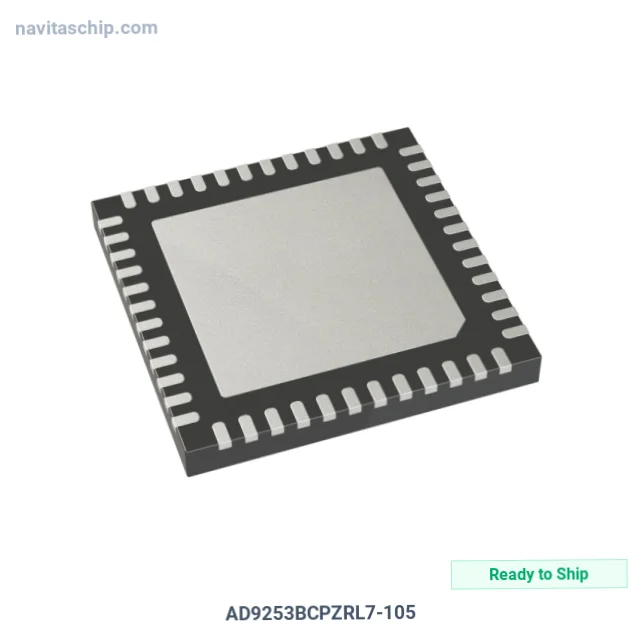

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD9253BCPZRL7-105 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-3043491 |
| Description | IC ADC 14BIT PIPELINED 48LFCSP |
| Spec | 48-WFQFN Exposed Pad, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at |
| Number of Bits | 14 |
| Sampling Rate (Per Second) | 105M |
| Number of Inputs | 4 |
| Input Type | Differential |
| Data Interface | LVDS - Serial |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 4 |
| Architecture | Pipelined |
| Reference Type | Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V |
| Features | Simultaneous Sampling |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 48-LFCSP (7x7) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD9253BCPZRL7-105 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD9253BCPZRL7-105 is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 14bit Pipelined in 48-Pin Csp Package, housed in a compact 48-LFCSP (7x7) package.
Facing precision ADC EOL and obsolescence disrupting data acquisition production lines? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 48-WFQFN Exposed Pad, CSP
- Device Package: 48-LFCSP (7x7)
- RoHS Compliant
Applications
Essential component for:
- differential input ADC with on-chip reference and PGA for low-level signals
- 20-bit and 24-bit ultra-high-resolution ADC for metrology and bridge sensor readout
- test and measurement instrumentation and bench data acquisition equipment
- communication waveform sampling and software-defined radio receivers
Why Choose NavitasChip for AD9253BCPZRL7-105?
NavitasChip offers wholesale pricing advantages for the AD9253BCPZRL7-105 and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Flexible shipping arrangements for AD9253BCPZRL7-105 with regional warehouse support.
AD9253BCPZRL7-105 - Get instant quote online.
