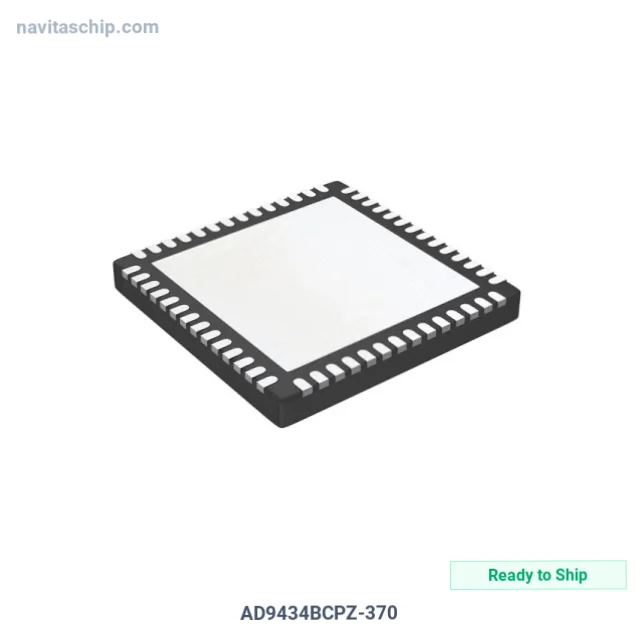

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD9434BCPZ-370 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2643235 |
| Description | IC ADC 12BIT PIPELINED 56LFCSP |
| Spec | 56-VFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 370M |
| Number of Inputs | 1 |
| Input Type | Differential |
| Data Interface | LVDS - Parallel |
| Configuration | S/H-ADC |
| Ratio - S/H | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | Pipelined |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.75V ~ 1.9V |
| Voltage - Supply, Digital | 1.75V ~ 1.9V |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 56-LFCSP-VQ (8x8) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD9434BCPZ-370 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD9434BCPZ-370 is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 12bit Pipelined in 56-Pin Csp Package, housed in a compact 56-LFCSP-VQ (8x8) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 56-VFQFN Exposed Pad, CSP
- Device Package: 56-LFCSP-VQ (8x8)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
