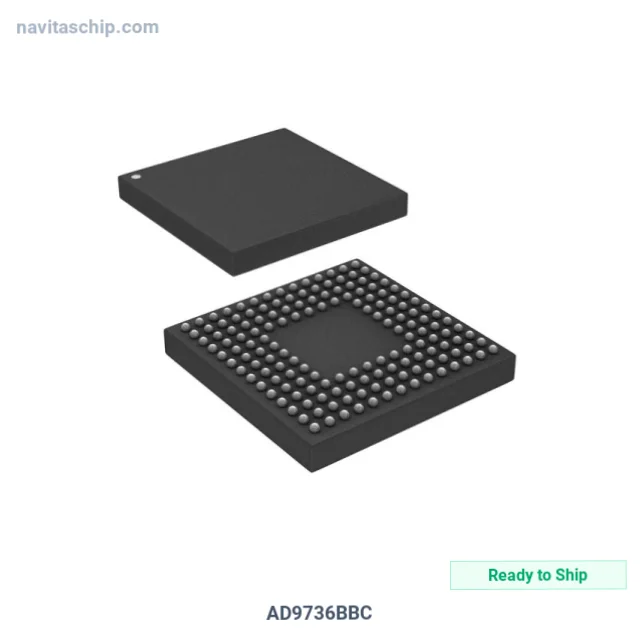

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD9736BBC |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-996593 |
| Description | IC DAC 14BIT A-OUT 160CSPBGA |
| Spec | 160-LFBGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Discontinued at |
| Number of Bits | 14 |
| Number of D/A Converters | 1 |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | LVDS - Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.7V ~ 1.9V, 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V, 3.13V ~ 3.47V |
| INL/DNL (LSB) | ±1, ±0.6 |
| Architecture | Oversampling Interpolating DAC |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 160-CSPBGA (12x12) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD9736BBC Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD9736BBC is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 14bit A-Out in 160-Pin BGA Package, housed in a compact 160-CSPBGA (12x12) package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 160-LFBGA, CSPBGA
- Device Package: 160-CSPBGA (12x12)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
