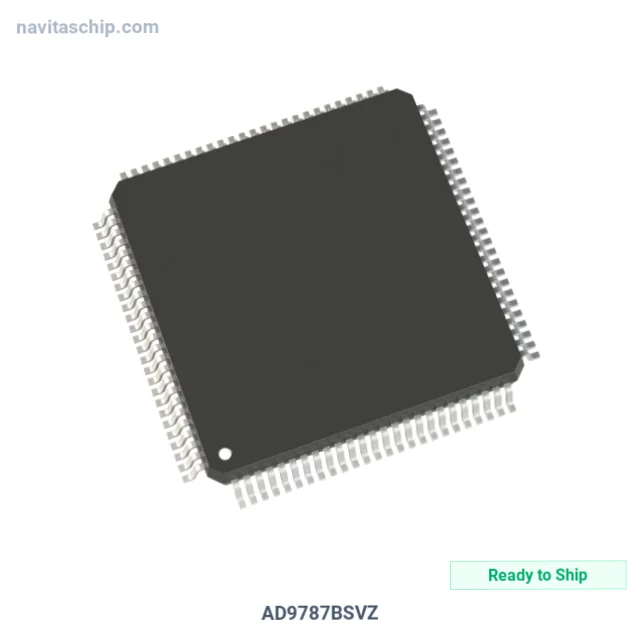

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD9787BSVZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-1825520 |
| Description | IC DAC 14BIT A-OUT 100TQFP |
| Spec | 100-TQFP Exposed Pad |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 14 |
| Number of D/A Converters | 2 |
| Settling Time | 20ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | Internal |
| Voltage - Supply, Analog | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V, 3.13V ~ 3.47V |
| INL/DNL (LSB) | ±1, ±0.5 |
| Architecture | Oversampling Interpolating DAC |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 100-TQFP-EP (14x14) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD9787BSVZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD9787BSVZ is a Digital-to-Analog Converter (DAC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Digital-To-Analog Converter 14bit A-Out in 100-Pin TQFP Package, housed in a compact 100-TQFP-EP (14x14) package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 100-TQFP Exposed Pad
- Device Package: 100-TQFP-EP (14x14)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
