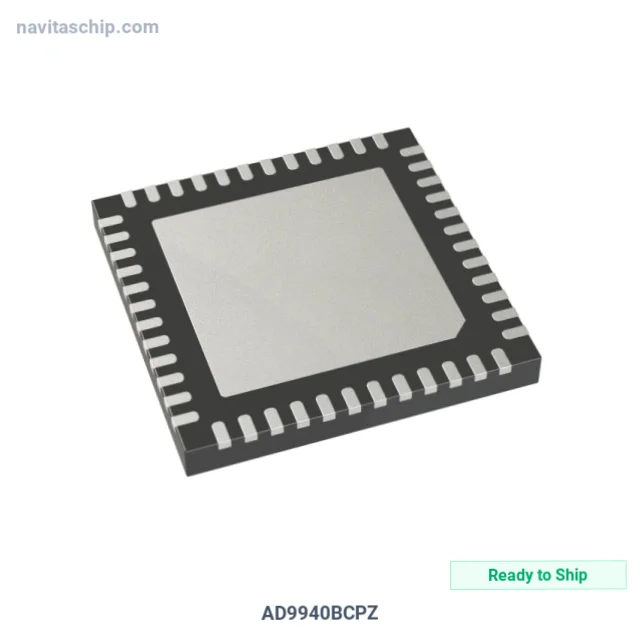

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | AD9940BCPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-996566 |
| Description | IC CDS CORRELATED 56M 48LFCSP |
| Spec | 48-WFQFN Exposed Pad, CSP |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Bulk |
| Product Status | Discontinued at |
| Type | CDS (Correlated Double Sampler) |
| Number of Channels | 1 |
| Sampling Rate (Per Second) | 56M |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LFCSP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. AD9940BCPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The AD9940BCPZ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Cds Correlated 56m in 48-Pin Csp Package, housed in a compact 48-LFCSP (7x7) package, with 2.7V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.7V ~ 3.6V
- Channels: 1
- Operating Temperature: -25°C ~ 85°C
- Mounting: Surface Mount
- Package: 48-WFQFN Exposed Pad, CSP
- Device Package: 48-LFCSP (7x7)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
