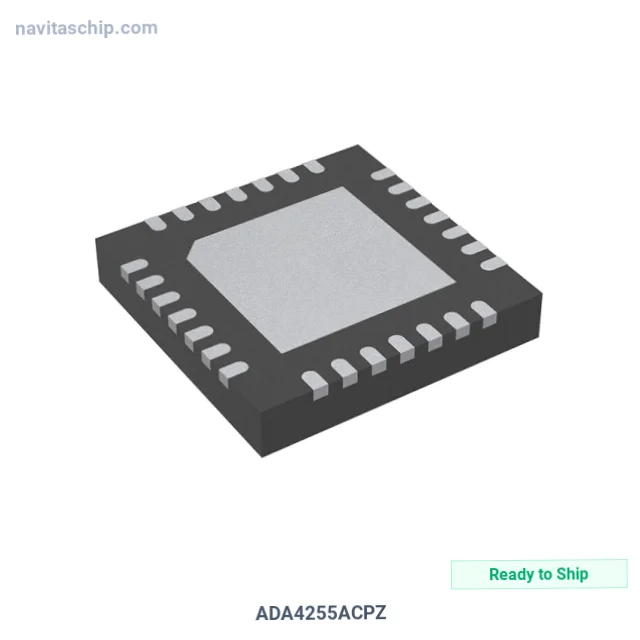

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADA4255ACPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-15216543 |
| Description | IC ZERO AMP 1 CIRCUIT 28LFCSP |
| Spec | 28-WFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Amplifier Type | Zero-Drift |
| Number of Circuits | 1 |
| Output Type | Differential |
| Slew Rate | 1.9V/µs |
| -3db Bandwidth | 2.3 MHz |
| Current - Input Bias | 450 pA |
| Voltage - Input Offset | 3 µV |
| Current - Supply | 15.6mA |
| Current - Output / Channel | 11 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 5 V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-LFCSP (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADA4255ACPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADA4255ACPZ is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Zero Amplifier 1 Circuit in 28-Pin Csp Package, housed in a compact 28-LFCSP (5x5) package.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 28-WFQFN Exposed Pad, CSP
- Device Package: 28-LFCSP (5x5)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
