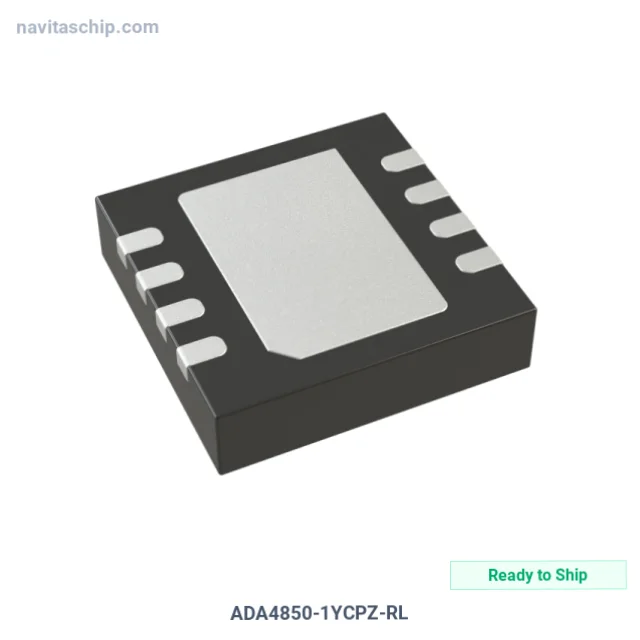

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADA4850-1YCPZ-RL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-994130 |
| Description | IC OPAMP VFB 1 CIRCUIT 8LFCSP |
| Spec | 8-WFDFN Exposed Pad, CSP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 220V/µs |
| -3db Bandwidth | 175 MHz |
| Current - Input Bias | 2.3 µA |
| Voltage - Input Offset | 600 µV |
| Current - Supply | 2.5mA |
| Current - Output / Channel | 118 mA |
| Voltage - Supply Span (Min) | 2.7 V |
| Voltage - Supply Span (Max) | 6 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-LFCSP (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADA4850-1YCPZ-RL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADA4850-1YCPZ-RL is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier Vfb 1 Circuit in 8-Pin Csp Package, housed in a compact 8-LFCSP (3x3) package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 8-WFDFN Exposed Pad, CSP
- Device Package: 8-LFCSP (3x3)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
