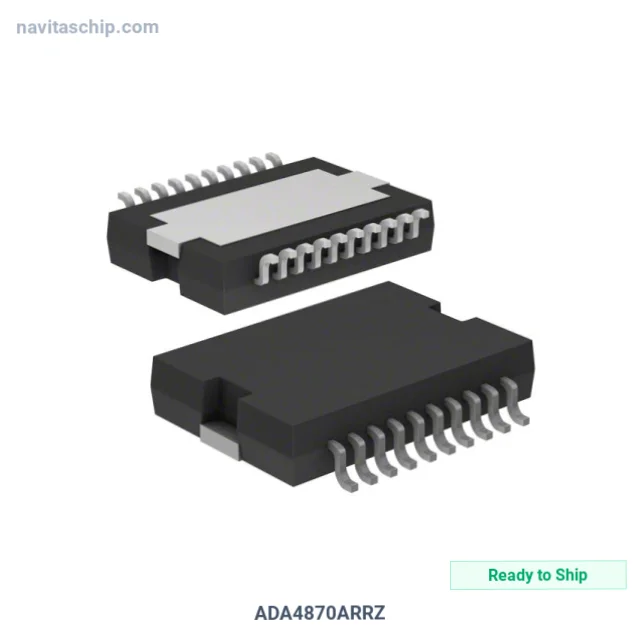

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADA4870ARRZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-4915083 |
| Description | IC OPAMP CFA 1 CIRCUIT 20PSOP3 |
| Spec | 20-PowerSOIC (0.433", 11.00mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Current Feedback |
| Number of Circuits | 1 |
| Slew Rate | 2500V/µs |
| -3db Bandwidth | 60 MHz |
| Current - Input Bias | 9 µA |
| Voltage - Input Offset | 1 mV |
| Current - Supply | 32.5mA |
| Voltage - Supply Span (Min) | 10 V |
| Voltage - Supply Span (Max) | 40 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-Power SOIC EP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADA4870ARRZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADA4870ARRZ is an Operational Amplifier (Op Amp) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Operational Amplifier Cfa 1 Circuit 20psop3, housed in a compact 20-Power SOIC EP package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 20-PowerSOIC (0.433", 11.00mm Width)
- Device Package: 20-Power SOIC EP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
