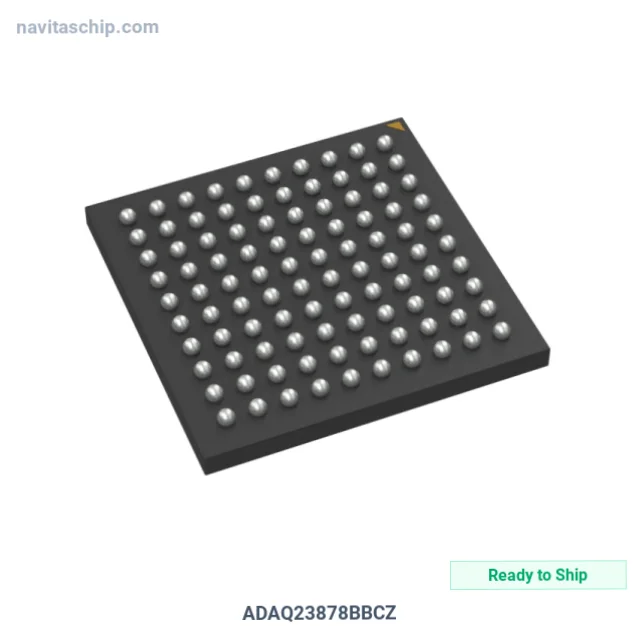

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADAQ23878BBCZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-16123958 |
| Description | 18-BIT, 15MSPS UMODULE |
| Spec | 100-FBGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | ADC |
| Number of Channels | 1 |
| Resolution (Bits) | 18 b |
| Sampling Rate (Per Second) | 15M |
| Data Interface | LVDS |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 4.75V ~ 5.25V, 4.75V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-CSPBGA (9x9) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADAQ23878BBCZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADAQ23878BBCZ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). 18-Bit, housed in a compact 100-CSPBGA (9x9) package, with 4.75V ~ 5.25V, 4.75V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V, 4.75V ~ 5.25V
- Channels: 1
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 100-FBGA, CSPBGA
- Device Package: 100-CSPBGA (9x9)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
