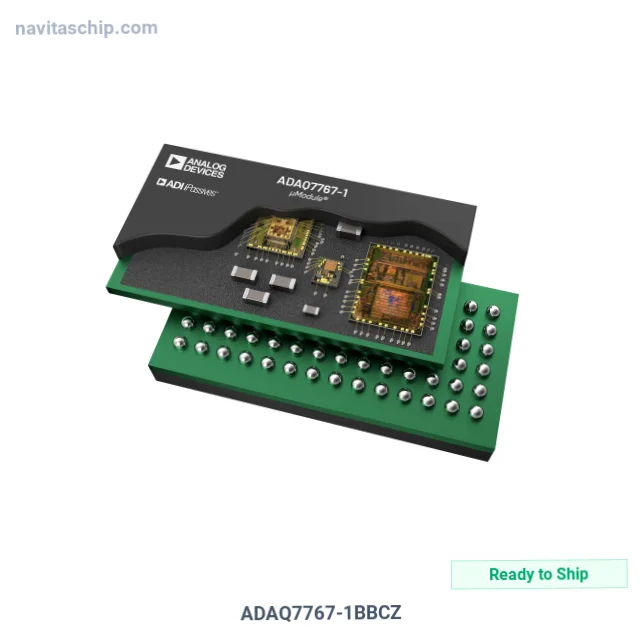

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADAQ7767-1BBCZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-24614762 |
| Description | +/-24V PGA I/P 24-BIT 256KSPS DA |
| Spec | 84-LFBGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 3, 6 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | LVDS, SPI |
| Configuration | ADC |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External |
| Voltage - Supply, Analog | 2V ~ 5.5V, 4.75V ~ 5.5V |
| Voltage - Supply, Digital | 1.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 105°C |
| Supplier Device Package | 84-CSPBGA (12x6) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADAQ7767-1BBCZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADAQ7767-1BBCZ is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). +/-24V Supply Pga I/p 24-Bit 256ksps Da, housed in a compact 84-CSPBGA (12x6) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C
- Mounting: Surface Mount
- Package: 84-LFBGA, CSPBGA
- Device Package: 84-CSPBGA (12x6)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
