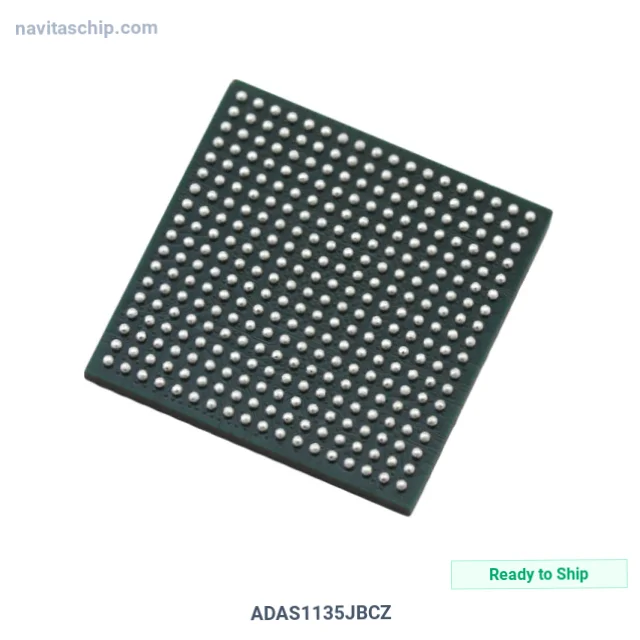

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADAS1135JBCZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-16398653 |
| Description | 256CHA 24BIT CURRENT TODIG CONVE |
| Spec | 324-BGA, CSPBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Discontinued at |
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 22.6k |
| Number of Inputs | 256 |
| Input Type | Differential |
| Data Interface | LVDS, SPI |
| Configuration | S/H-ADC |
| Ratio - S/H | 4:2 |
| Number of A/D Converters | 2 |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.8V, 2.5V, 3.3V |
| Voltage - Supply, Digital | 1.8V, 2.5V, 3.3V |
| Supplier Device Package | 324-CSPBGA (19x19) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADAS1135JBCZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADAS1135JBCZ is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). 256cha 24bit Current Todig Conve, housed in a compact 324-CSPBGA (19x19) package.
Key Technical Specifications
- Mounting: Surface Mount
- Package: 324-BGA, CSPBGA
- Device Package: 324-CSPBGA (19x19)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
