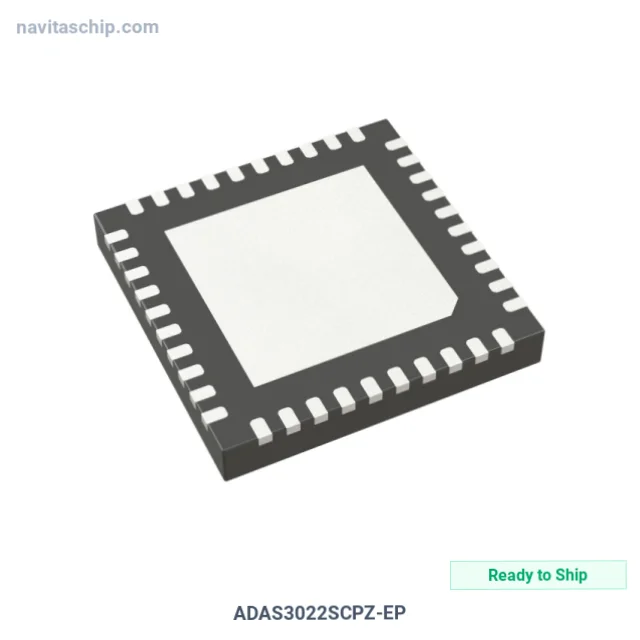

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADAS3022SCPZ-EP |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-7390042 |
| Description | IC ADC 16BIT SAR 40LFCSP |
| Spec | 40-VFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Analog to Digital Converters (ADC) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 1M |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI |
| Configuration | MUX-ADC |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Operating Temperature | -55°C ~ 105°C |
| Supplier Device Package | 40-LFCSP-VQ (6x6) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADAS3022SCPZ-EP Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADAS3022SCPZ-EP is an Analog-to-Digital Converter (ADC) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Analog-To-Digital Converter 16bit Sar in 40-Pin Csp Package, housed in a compact 40-LFCSP-VQ (6x6) package.
Key Technical Specifications
- Operating Temperature: -55°C ~ 105°C
- Mounting: Surface Mount
- Package: 40-VFQFN Exposed Pad, CSP
- Device Package: 40-LFCSP-VQ (6x6)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
