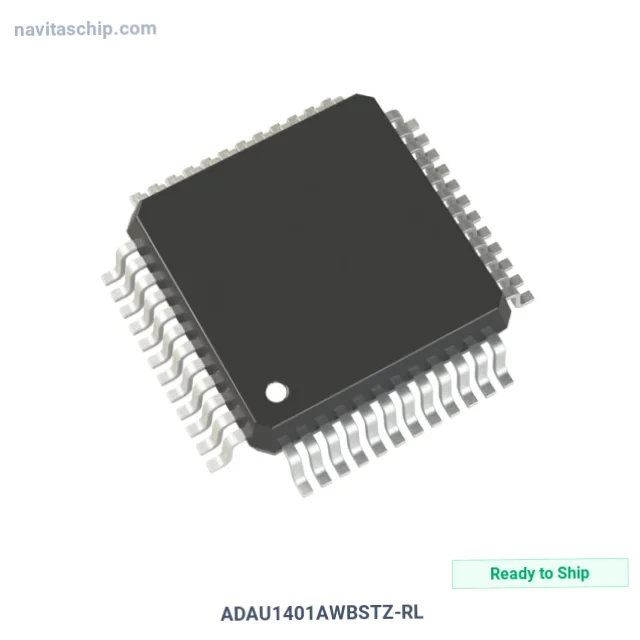

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADAU1401AWBSTZ-RL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-2342645 |
| Description | IC AUDIO PROC 28/56BIT 48LQFP |
| Spec | 48-LQFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Sigma |
| Interface | I2C, SPI |
| Clock Rate | 50MHz |
| On-Chip RAM | 12kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.80V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADAU1401AWBSTZ-RL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADAU1401AWBSTZ-RL is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). Integrated Circuit Audio Proc 28/56bit in 48-Pin LQFP Package, housed in a compact 48-LQFP (7x7) package.
Key Technical Specifications
- Interface: I2C, SPI
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 48-LQFP
- Device Package: 48-LQFP (7x7)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
