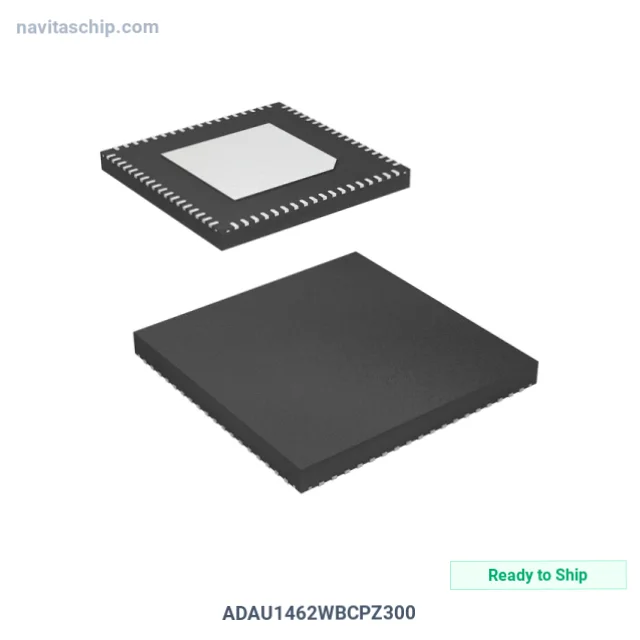

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADAU1462WBCPZ300 |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-7915230 |
| Description | 32BIT SIGMADSP AUDIO 16K/48K |
| Spec | 72-VFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Sigma |
| Interface | I2C, SPI |
| Clock Rate | 294.912MHz |
| Non-Volatile Memory | ROM (64kB) |
| On-Chip RAM | 192kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Supplier Device Package | 72-LFCSP-VQ (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADAU1462WBCPZ300 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADAU1462WBCPZ300 is a Digital Signal Processor (DSP) manufactured by Analog Devices Inc. (ADI). 32bit Sigmadsp Audio 16k/48k, housed in a compact 72-LFCSP-VQ (10x10) package.
Key Technical Specifications
- Interface: I2C, SPI
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 72-VFQFN Exposed Pad, CSP
- Device Package: 72-LFCSP-VQ (10x10)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
