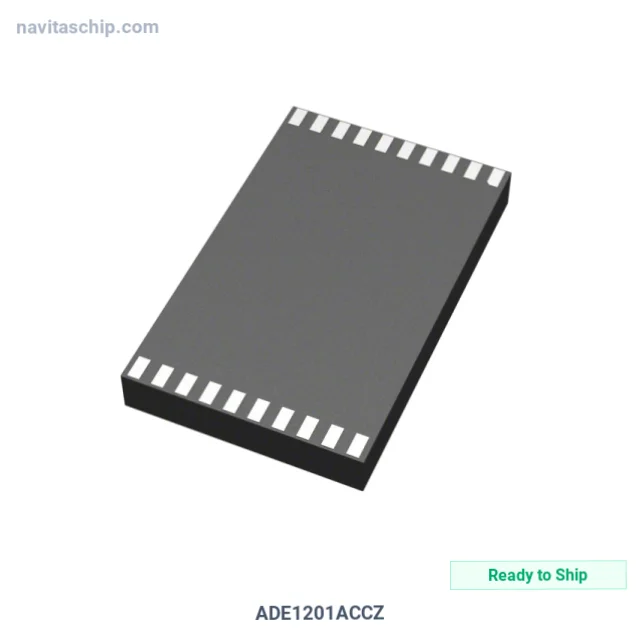

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADE1201ACCZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-11501286 |
| Description | IC ISOL MOD 8BIT 100K 20LGA |
| Spec | 20-TFLGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Isolated Module |
| Number of Channels | 1 |
| Resolution (Bits) | 8 b |
| Sampling Rate (Per Second) | 100k |
| Data Interface | SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.97V ~ 3.63V, 2.97V ~ 3.63V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-LGA (5x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADE1201ACCZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADE1201ACCZ is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Isolated Mod 8bit 100k in 20-Pin Lga Package, housed in a compact 20-LGA (5x8) package, with 2.97V ~ 3.63V, 2.97V ~ 3.63V supply voltage.
Facing excess inventory tying up working capital? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Supply Voltage: 2.97V ~ 3.63V, 2.97V ~ 3.63V
- Channels: 1
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 20-TFLGA
- Device Package: 20-LGA (5x8)
- RoHS Compliant
Applications
Critical part of:
- digital audio workstation and live sound reinforcement systems
- high-fidelity consumer audio playback and portable music players
- isolated delta-sigma ADC for industrial motor drive current sensing
Why Choose NavitasChip for ADE1201ACCZ?
NavitasChip offers competitive market pricing for the ADE1201ACCZ and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
ADE1201ACCZ sourced and shipped via our Asia-Pacific distribution network.
ADE1201ACCZ - Get instant quote online.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
