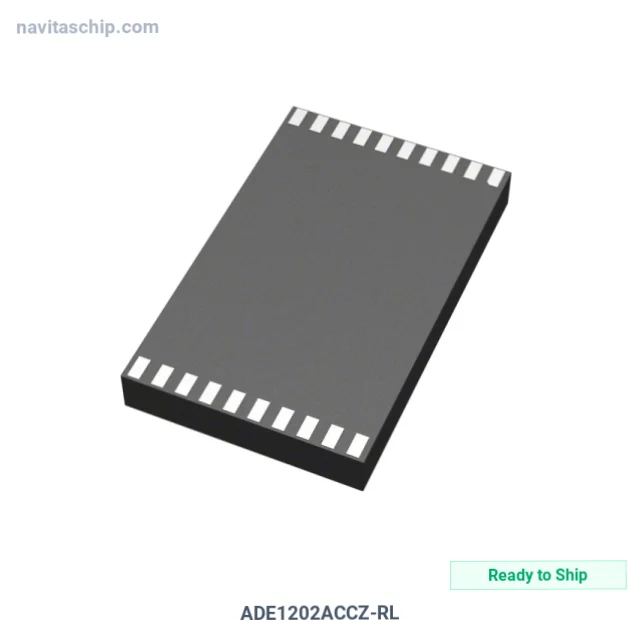

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADE1202ACCZ-RL |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-11501297 |
| Description | IC ISOL MOD 8BIT 100K 20LGA |
| Spec | 20-TFLGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | Analog Devices Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Isolated Module |
| Number of Channels | 2 |
| Resolution (Bits) | 8 b |
| Sampling Rate (Per Second) | 100k |
| Data Interface | SPI |
| Voltage Supply Source | Single Supply |
| Voltage - Supply | 2.97V ~ 3.63V, 2.97V ~ 3.63V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-LGA (5x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADE1202ACCZ-RL Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADE1202ACCZ-RL is an Audio Codec and Special-Purpose Data Converter IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Isolated Mod 8bit 100k in 20-Pin Lga Package, housed in a compact 20-LGA (5x8) package, with 2.97V ~ 3.63V, 2.97V ~ 3.63V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.97V ~ 3.63V, 2.97V ~ 3.63V
- Channels: 2
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 20-TFLGA
- Device Package: 20-LGA (5x8)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
