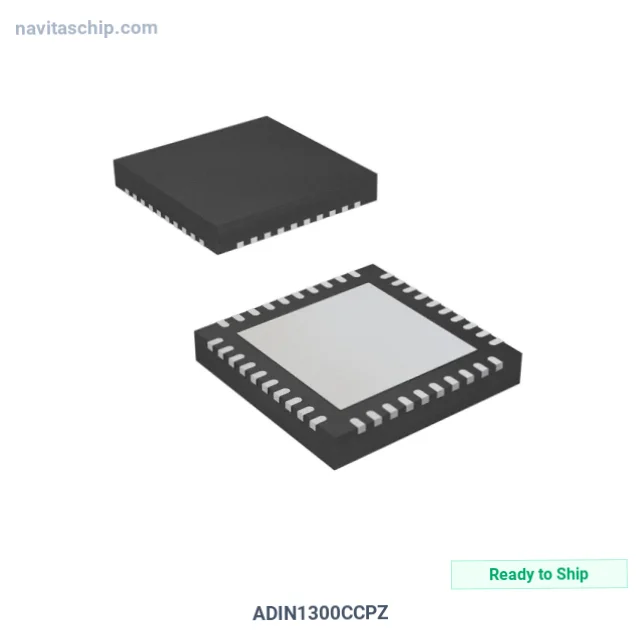

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADIN1300CCPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-10658951 |
| Description | IC TXRX FULL/HALF 4/4 40LFCSP |
| Spec | 40-WFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Type | Transceiver |
| Protocol | IEEE 802.3 |
| Number of Drivers/Receivers | 4/4 |
| Duplex | Full, Half |
| Data Rate | 10Mbps, 100Mbps, 1Gbps |
| Voltage - Supply | 1.71V ~ 1.89V, 2.25V ~ 2.75V, 3.14V ~ 3.46V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 40-LFCSP-WQ (6x6) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADIN1300CCPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADIN1300CCPZ is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Transceiver Full/half 4/4 in 40-Pin Csp Package, housed in a compact 40-LFCSP-WQ (6x6) package, with 1.71V ~ 1.89V, 2.25V ~ 2.75V, 3.14V ~ 3.46V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.71V ~ 1.89V, 2.25V ~ 2.75V, 3.14V ~ 3.46V
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 40-WFQFN Exposed Pad, CSP
- Device Package: 40-LFCSP-WQ (6x6)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
