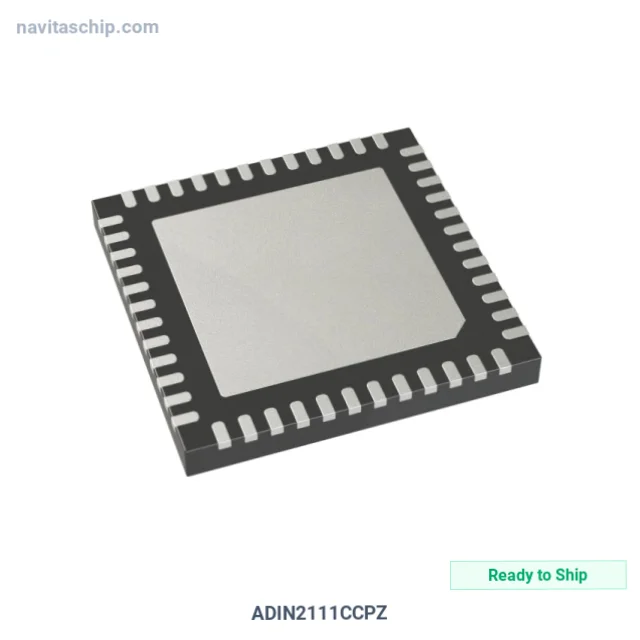

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADIN2111CCPZ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-15906326 |
| Description | 2-PORT SWITCH WITH 10BASE-T1L PH |
| Spec | 48-WFQFN Exposed Pad, CSP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Controllers |
| Manufacturer | Analog Devices Inc. |
| Package | Tray |
| Product Status | Active |
| Protocol | Ethernet |
| Function | Switch |
| Interface | Serial, SPI |
| Standards | IEEE 802.3, 10 Base-T PHY |
| Voltage - Supply | 1.71V ~ 3.46V, 3.13V ~ 3.46V |
| Current - Supply | 65mA |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Supplier Device Package | 48-LFCSP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADIN2111CCPZ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADIN2111CCPZ is an Interface Controller IC manufactured by Analog Devices Inc. (ADI). 2-Port Switch with 10base-T1l Ph, housed in a compact 48-LFCSP (7x7) package, with 1.71V ~ 3.46V, 3.13V ~ 3.46V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.71V ~ 3.46V, 3.13V ~ 3.46V
- Interface: Serial, SPI
- Operating Temperature: -40°C ~ 105°C (TA)
- Package: 48-WFQFN Exposed Pad, CSP
- Device Package: 48-LFCSP (7x7)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
