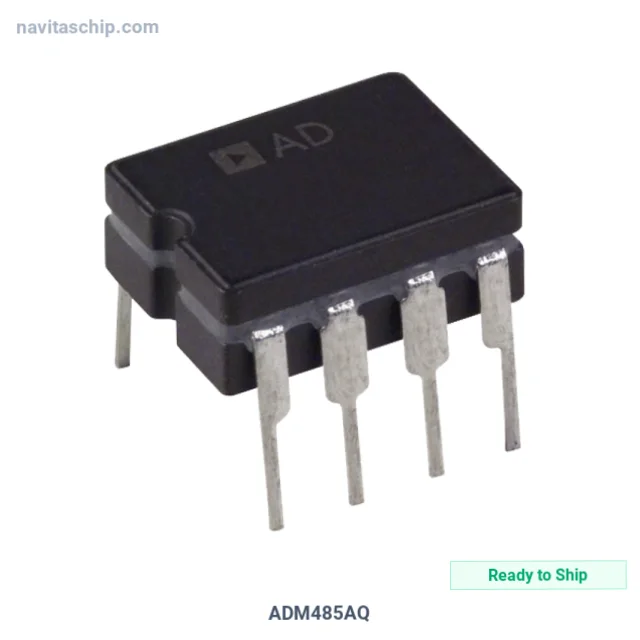

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | ADM485AQ |
| Manufacturer | Analog Devices Inc. |
| NavitasChip Part Number | NAVI-11543546 |
| Description | IC TXRX SINGLE RS-485 5V 8CDIP |
| Spec | 8-CDIP (0.300", 7.62mm) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | Analog Devices Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers | 1/1 |
| Voltage - Supply | 4.75V ~ 5.25V |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-CERDIP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Analog Devices Inc. ADM485AQ Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The ADM485AQ is an Interface Driver Receiver Transceiver IC manufactured by Analog Devices Inc. (ADI). Integrated Circuit Transceiver Single RS-485 5V Supply 8cdip, housed in a compact 8-CERDIP package, with 4.75V ~ 5.25V supply voltage.
Key Technical Specifications
- Supply Voltage: 4.75V ~ 5.25V
- Mounting: Through Hole
- Package: 8-CDIP (0.300", 7.62mm)
- Device Package: 8-CERDIP
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
